Milan Height Adjustable Desk Series

Choose Milan by the configuration you need — not by a single headline specification.

Choose Your Starting Milan Configuration

Manual 2-Stage

For projects that do not require an electric lifting system.

Dual-Motor 2-Stage Standard

For electric adjustment where a 2-stage lifting structure is the starting requirement.

Dual-Motor 3-Stage Standard

For projects starting from a 3-stage electric lifting structure.

Dual-Motor 3-Stage High-Speed

For 3-stage electric applications where faster movement is part of the requirement.

Three decisions narrow the choice: Manual or electric → 2-stage or 3-stage → standard or high-speed.

Your choice provides a starting point for the fit and technical checks that follow.

Continue to Fit & Layout Checks

white two leg electric height adjustable desk with wood desktop and handset control

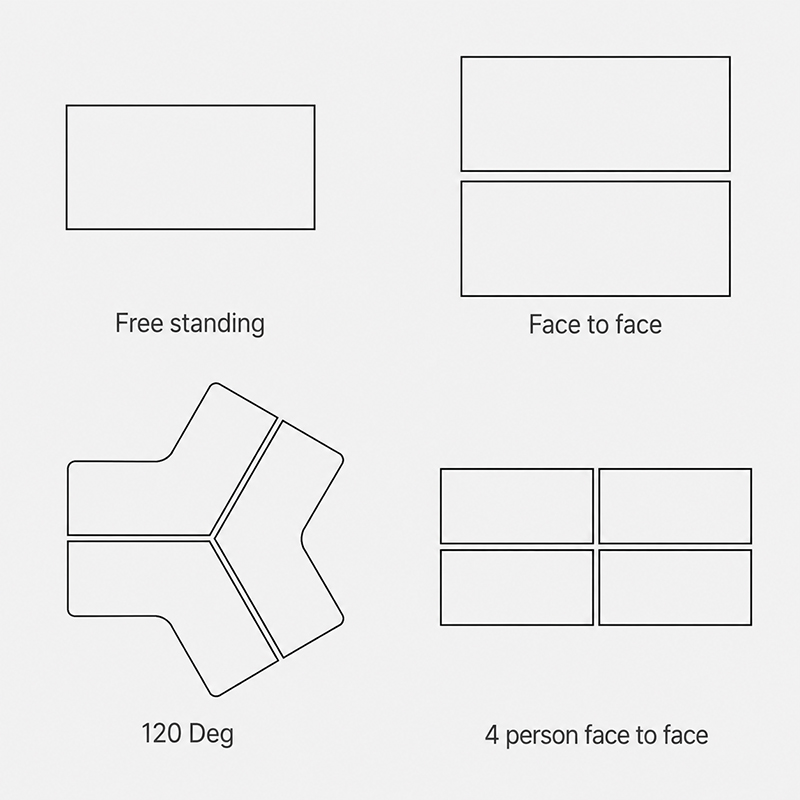

Match the Configuration to the Workspace

Layout

Start with the planned workspace:

Single-user
4-person face-to-face
120° workstation

Use the layout to narrow the Milan direction before checking desktop and base fit.

Base

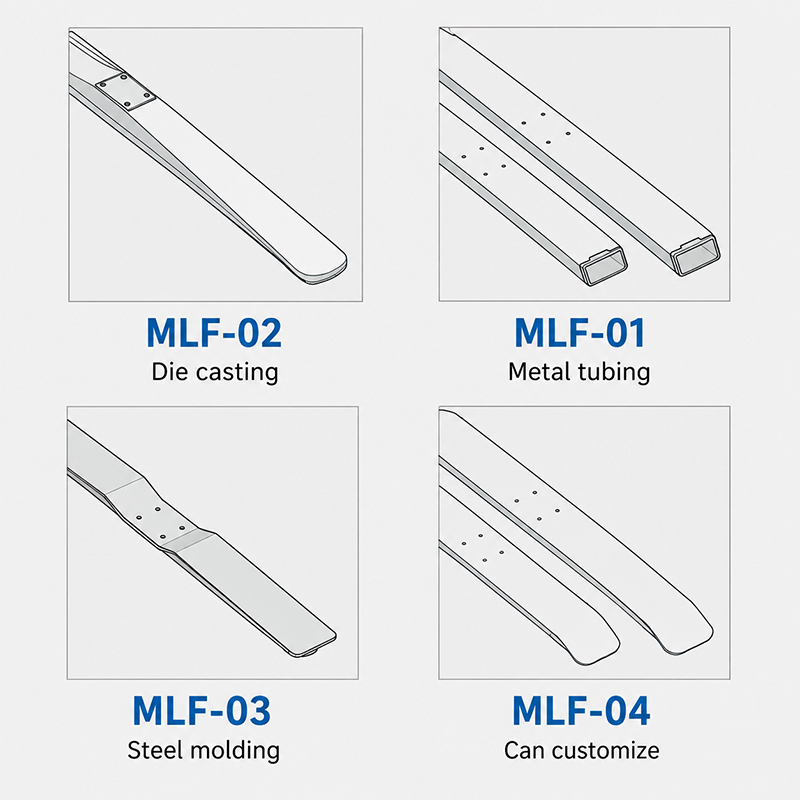

Review the Milan base references currently identified:

MLF-01
MLF-02
MLF-03
Custom Foot Reference

Treat the base as part of the fit decision, together with the selected layout, desktop and frame requirements.

Desktop

For a 3-stage configuration, a 1400–1800 mm desktop-length direction can be evaluated.

Check the fixing method, installed equipment and resulting load together with the selected frame.

Fit Outcome

Direction can continue: The planned layout and desktop requirements do not change the selected Milan direction.

Exact fit check required: The base, fixing, frame or load relationship still needs project-specific confirmation.

Continue to Technical & Electrical Checks

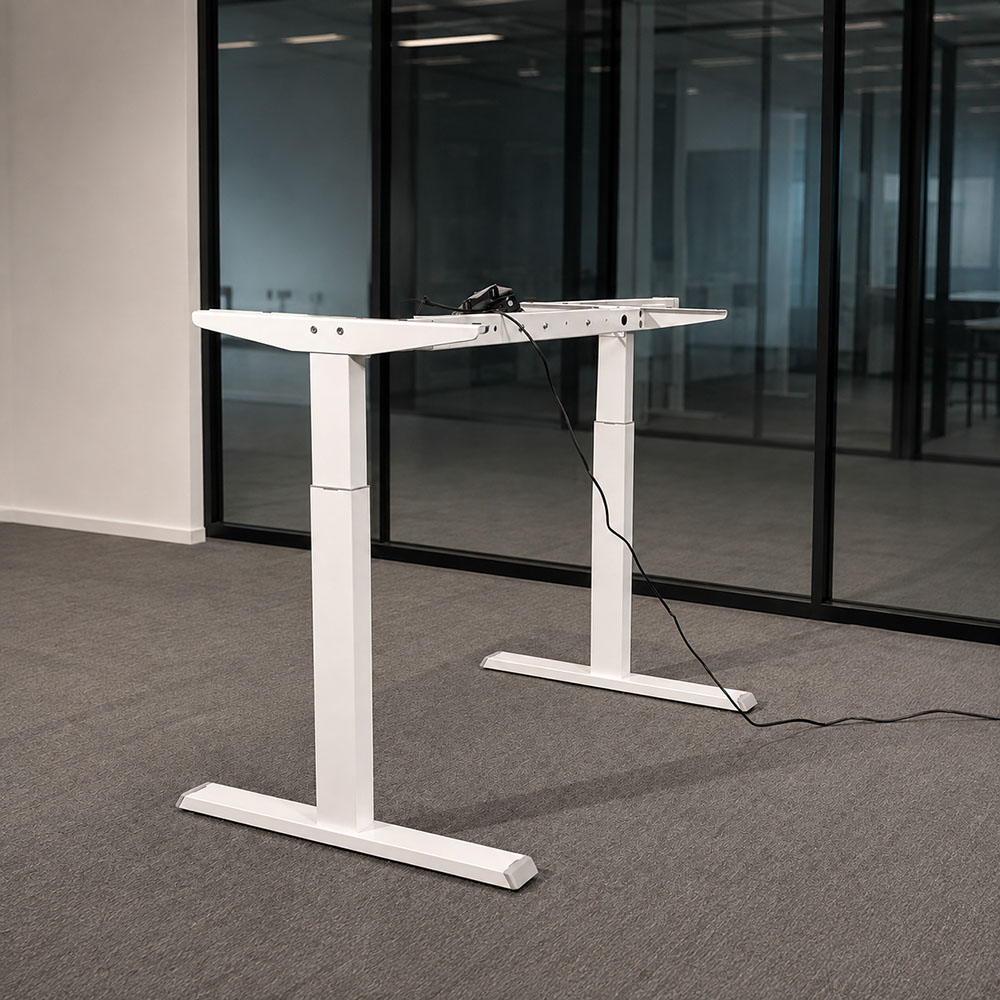

electric height adjustable desk frame showing lifting columns upper frame and connected cabling

Check Technical and Electrical Fit

Check the lifting, control and electrical relationships behind the selected Milan direction.

Movement

Speed is configuration-specific. Match it to the selected lifting system, control setup and operating conditions rather than treating one value as a Milan Series specification.

Rated Load Is Not the Same as Stability

Evaluate both against the final desk configuration.

Control System

For an electric Milan configuration, treat the control system as one connected chain:

Motor / lifting system → Control box → Handset → Connections

Component, wiring and communication details need to match the selected configuration. Use drawings or specifications only for the relationships they actually identify.

Destination-Market Power

Destination market → Voltage → Plug → Electrical configuration

A compatible plug alone does not establish complete electrical fit for the destination market.

Technical Fit Outcome

Ready for Evidence Review: The lifting, control and destination-market requirements are aligned with the selected Milan direction.

Exact Technical Check Required: One or more speed, control-system, connection, load/stability or electrical relationships still need exact configuration review.

Continue to Evidence Review

See What Evidence Applies to the Selected Milan Configuration

Evidence is most useful when the tested object, result and model relationship are clear.

Tested Object	Milan Mapping	BIFMA Result	Listed Models
ML-02	Milan 2-stage dual motor	PASS	KA3D / KA3E
ML-03	Milan 3-stage dual motor	PASS	KA5D / KA5E

Evidence Scope

Tested ≠ Listed ≠ Series-wide

A listed model is not the same as an independently tested object, and one test result should not be read as coverage for every Milan configuration.

How to Read the Evidence

Tested Object

ML-02 and ML-03 carry the mapped BIFMA PASS results shown above.

Listed Models

KA3D / KA3E and KA5D / KA5E are identified as listed-model relationships under the corresponding ML evidence records.

Document Scope

Use the report only for the object and scope it actually identifies; report access is handled separately where required.

Other compliance documents should be matched to the exact configuration before they are treated as applicable.

Continue to Selection Summary

Your Milan Configuration Summary

Bring the selected direction, fit checks, technical requirements and evidence status together before moving to exact configuration and quotation.

Configuration Direction

Use the Milan direction identified from the comparison above: manual or electric, 2-stage or 3-stage, and standard or high-speed where relevant.

Workspace Fit

Carry forward the layout, desktop and base requirements that affect the final configuration.

Technical & Electrical

Identify any remaining lifting-system, control, connection or destination-market electrical requirements.

Evidence Scope

Match the required evidence to the exact Milan configuration and the object or model actually covered.

Project Inputs for Exact Confirmation

Destination market · Quantity · Exact desktop / project requirements

Exact Configuration & Quotation

Confirm the current SKU, final configuration, quantity and quotation.

Engineering / Electrical Review

Use this route if an exact compatibility or electrical relationship is still unresolved.

Evidence Review

Use this route if report applicability, scope or document access still needs to be resolved.

Secondary routes:

Compare Other Height-Adjustable Table Options

When Milan is not the only remaining candidate.

View Milan Project Examples

Compare Milan 2-Stage Desk Configurations

Compare the two Milan 2-stage directions by adjustment method, lifting architecture and the specifications that matter to the final configuration.

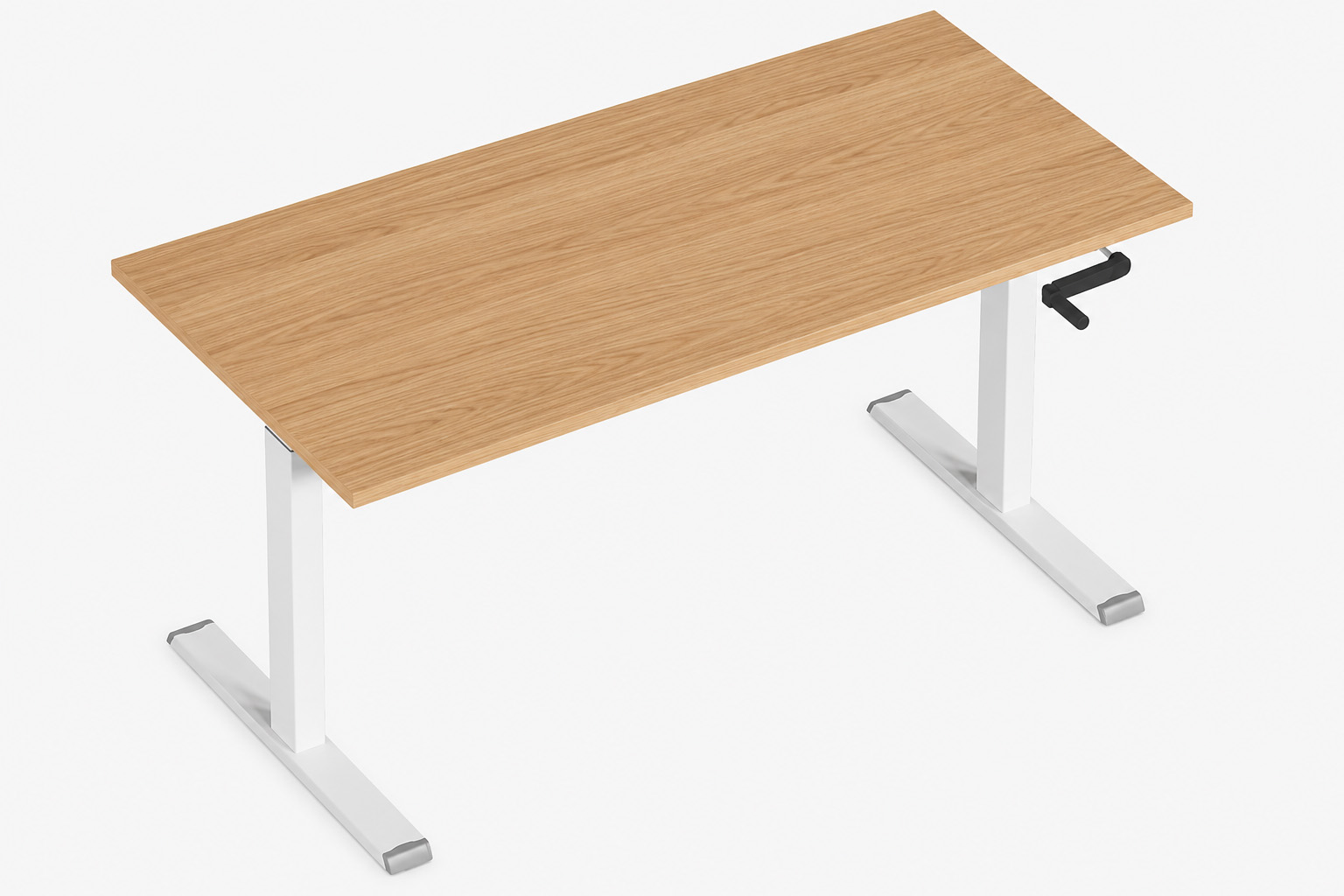

manual crank height adjustable desk with two stage white legs and wood desktop

Milan Manual 2-Stage Height-Adjustable Desk

Key Features: Cost-effective, manually height-adjustable, and structurally stable.

Height Range: 720–1200 mm

Maximum Load: 80 kg

Adjustment Method: Hand-crank manual adjustment

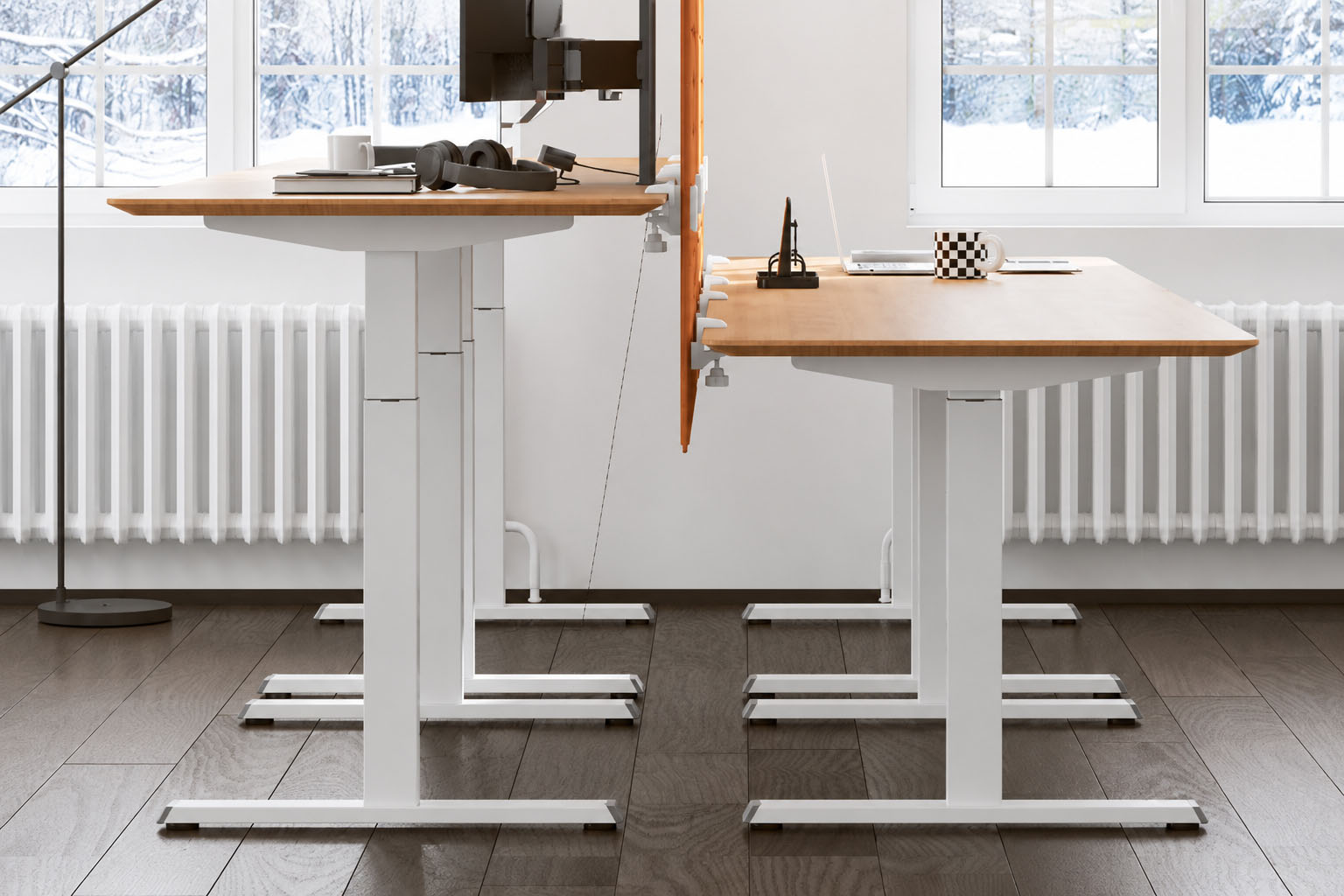

two electric height adjustable desks shown at different working heights in an office setting

Milan Dual-Motor 2-Stage Height-Adjustable Desk — Standard

Key Features: Electric height adjustment with smooth operation and a moderate lifting speed.

Height Range: 720–1200 mm

Maximum Load: 120 kg

Lifting Speed: Standard speed (approx. 30 mm/s)

Drive System: Dual-motor drive

Compare Milan 3-Stage Desk Configurations

Compare the standard and high-speed dual-motor 3-stage options by lifting range, load capacity, speed, desktop compatibility and intended application.

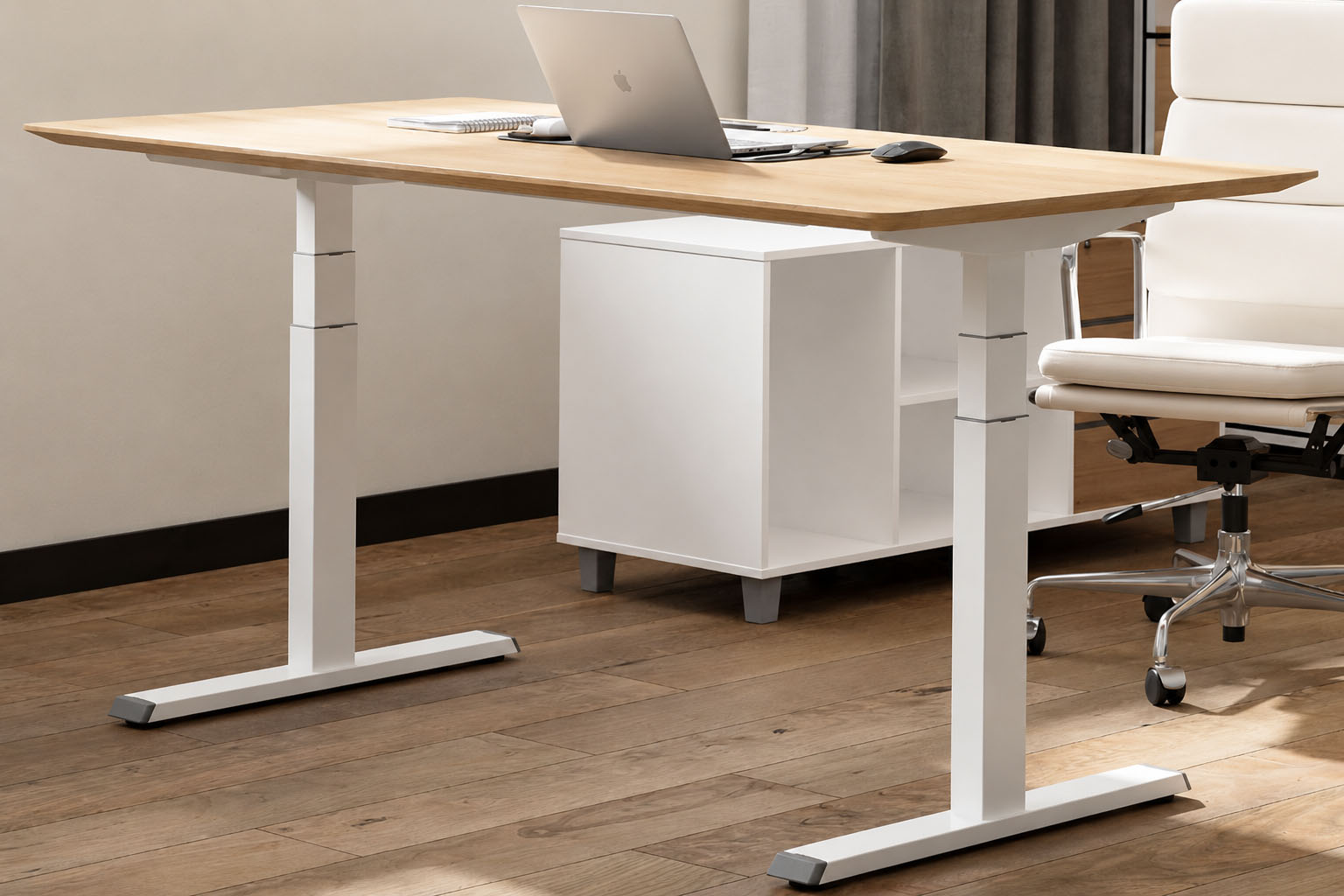

white three stage electric height adjustable desk with wood desktop in an office setting

Dual-Motor 3-Stage — Standard

Material: High-quality cold-rolled steel tubing with an electrostatic powder-coated finish, 60–70 μm coating thickness, for a durable, refined surface.

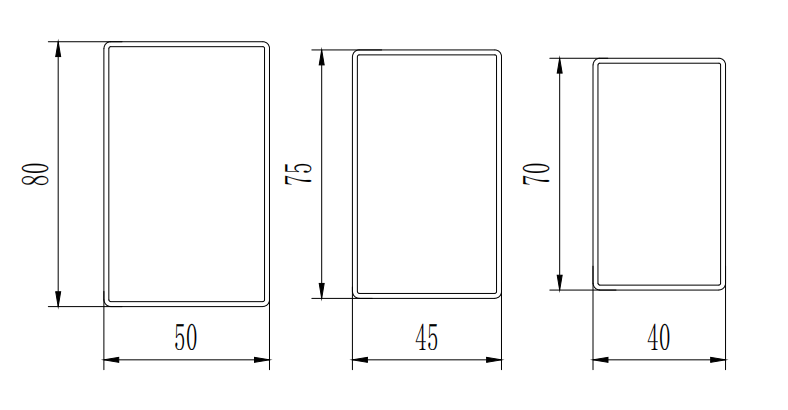

Column Sections: 50 × 80 × 1.5 mm outer / 45 × 75 × 1.5 mm middle / 40 × 70 × 1.5 mm inner

Height Range: 620–1250 mm

Rated Load: 120 kg

Speed: 30 mm/s

Noise: <50 dB

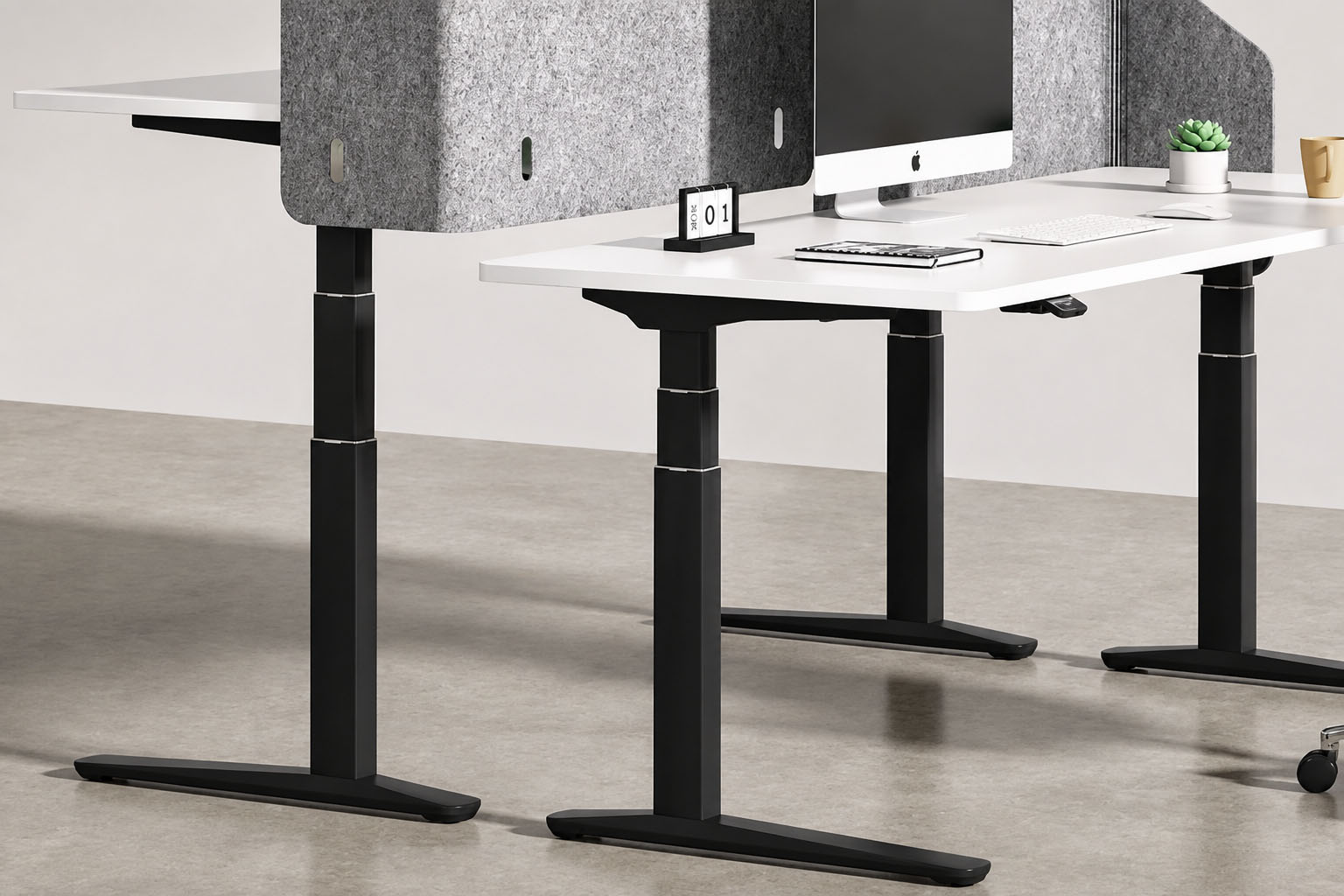

black three stage height adjustable workstation with privacy screens and multiple desks

Dual-Motor 3-Stage — High-Speed

Material: High-quality cold-rolled steel tubing with an electrostatic powder-coated finish, 60–70 μm coating thickness, for a durable, refined surface.

Column Sections: 50 × 80 × 1.5 mm outer / 45 × 75 × 1.5 mm middle / 40 × 70 × 1.5 mm inner

Height Range: 620–1250 mm

Rated Load: 100 kg

Speed: 40 mm/s

Noise: <55 dB

milan three stage column sections dimensions
