L-Shaped Desk Selection

Is an L-Shaped Height Adjustable Desk the Right Choice?

An L-shaped height adjustable desk is the right choice when the workspace requires a main work surface with a connected return. Before comparing motors, load capacity or technical configurations, first confirm that the required layout is genuinely L-shaped and identify the basic layout and supply requirements.

Start with three requirements:

Supply form

Complete desk or frame-only scope

Planned layout

Main work surface and connected return

Return direction

Left-hand or right-hand return

Choose an L-shaped configuration when the project requires this connected corner layout. If the requirement is a straight desk, a general frame-only solution or a multi-user workstation, consider the corresponding desk or workstation category before comparing technical configurations.

installed l shaped height adjustable desk with a connected return in an office workstation

MODEL:Mige

L-Shaped Desk Compatibility

Will the L-Shaped Configuration Fit the Space, Desktop and Working Load?

An L-shaped desk is not a fit just because one dimension or load figure works. The footprint, desktop, moving load and working height must match the same frame configuration, while stability must be assessed separately.

Footprint & Return

Match the main surface, return dimensions, return direction and available floor space to the selected frame geometry.

Desktop & Frame

Confirm desktop dimensions, material, thickness and fixing points. The current height-range reference uses a 25 mm desktop; MFC, plywood and veneer are current material references. Frame adjustment range does not mean every desktop size is compatible.

Moving Load

Count the desktop, equipment and accessories that move with the desk. The current Rated Load reference for the applicable L-shaped three-leg configuration is 120 kg, including the desktop.

Working Height & Stability

The current height-range references are 720–1200 mm for 2-stage and 620–1250 mm for 3-stage configurations, using the 25 mm desktop and leveling-glide measurement basis. Rated Load does not establish stability; actual proportions, working height and load distribution also matter.

Compatibility Result

Fit –All four conditions match the same configuration.

Conditional Fit –Configuration-specific details still need confirmation.

No Fit –A confirmed requirement falls outside the selected configuration.

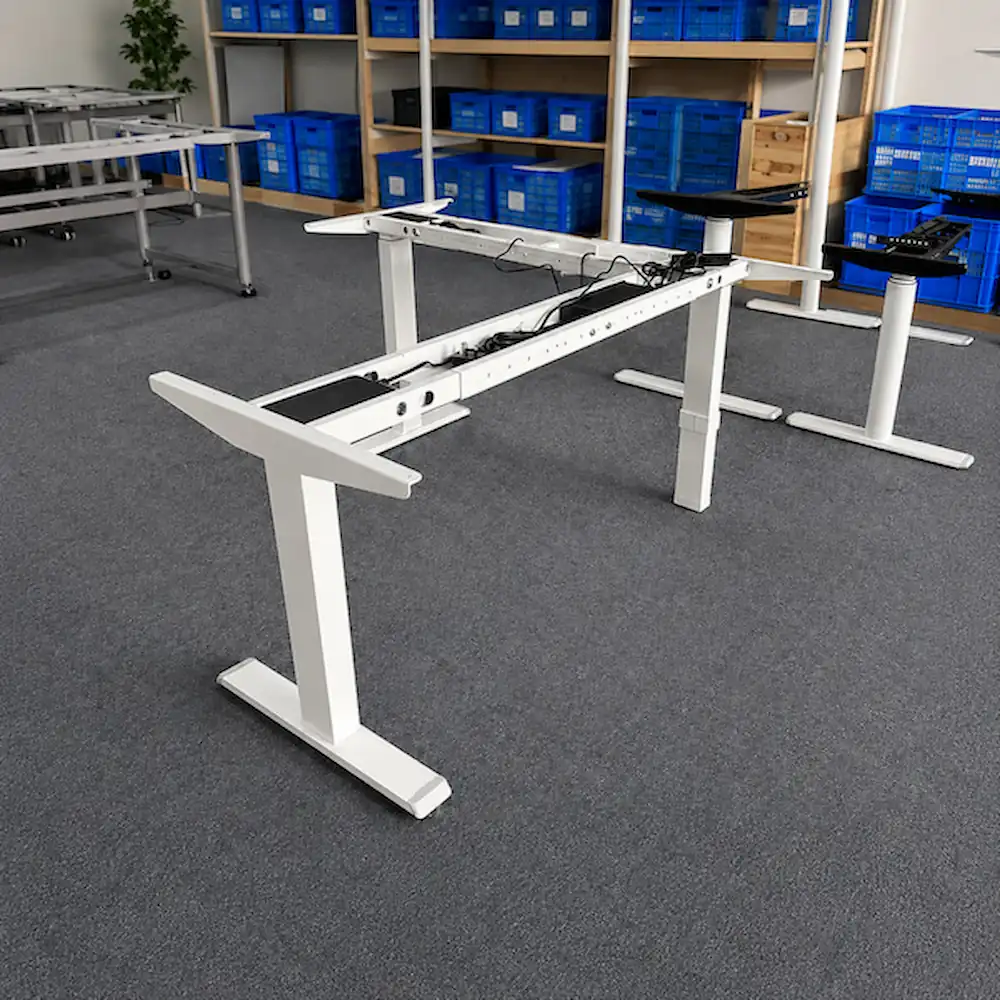

three leg l shaped height adjustable desk frame showing the main and return frame structure

Power and Control Configuration

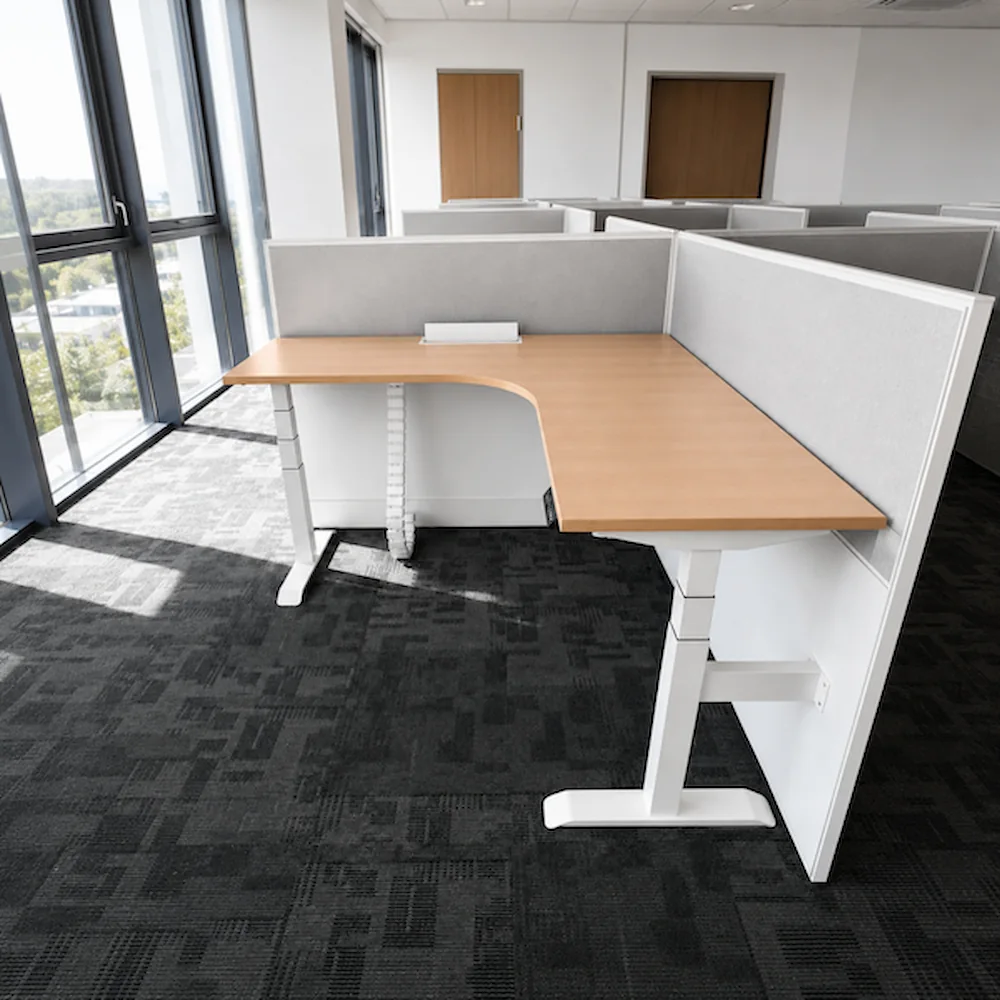

installed l shaped height adjustable desk showing the cable management chain and handset

Installed L-shaped desk showing the cable-management chain and handset

Will the Powered Configuration Match the Target Market?

Plug choice alone does not establish target-market fit. Check the following four requirements against the same powered configuration.

01 Powered System

Columns, motors, control box, handset and wiring must be specified to work together. Similar-looking components are not automatically interchangeable.

02 Full-Travel Cables

Keep power and equipment cables secure and unobstructed through the full height range, including powered accessories that move with the desk.

03 Market Electrical Requirements

Confirm the destination country, mains voltage, frequency and required plug or power lead for the selected electrical configuration.

04 Document Coverage

Confirm that reports, declarations, rating labels and supporting documents cover the configuration being supplied. If the control box or electrical setup changes, check the coverage again.

Configuration Result

Matched –All four requirements align with the same configuration.

Verification Required –Electrical or document details still need confirmation.

Recheck Required –After a configuration change or mismatch, recheck target-market fit and document coverage.

Project Planning and RFQ

What Should You Prepare for an L-Shaped Desk Quote?

Once an L-shaped configuration has been identified, check the site conditions and prepare the core project details needed for configuration review and quotation.

Check readiness blockers

Flag any access, assembly-clearance or power-location condition that could prevent the selected L-shaped setup from moving forward.

Prepare the project brief

Project scope

Quantity, complete-desk or frame-only requirement, main and return dimensions, and return direction.

Technical inputs

Desktop requirement, expected moving load and destination country. Add a drawing or BOQ when available.

Confirm the selection status

• Configuration identified: The layout, physical fit, powered-system and target-market requirements have been matched to one configuration.

• Verification needed: One or more physical, electrical or document details still require confirmation.

• Alternative required: The requirement is better suited to another desk format or product category.

Request configuration review and quotation

Send the project brief for configuration review and quotation. Pricing and delivery conditions are based on the final configuration and project requirements.
