Meige Economic Height Adjustable Desk Series

Meige is designed for budget-sensitive height-adjustable desk projects. Its core Economic configuration uses a dual-motor, 2-stage structure, with configuration and layout options for different project requirements.

Single-Desk Economic Configuration

Meige Dual-motor 2-stage — Economic
For single-desk projects, key selection factors include height range, load, frame requirements and control functions.

Face-to-Face Economic Configuration

Meige Dual-motor 2-stage Face-to-face — Economic
For opposed workstation projects, use the Face-to-Face Economic configuration as the starting point.

Economic describes Meige’s positioning for budget-sensitive projects. It does not mean Meige is the lowest-priced option or guarantee the lowest total project cost.

Next, verify the core configuration against your project requirements

meige economic single desk height adjustable desk configuration

Meige Economic single-desk configuration

Does the Meige Economic Core Configuration Fit Your Project?

This core single-desk configuration uses a dual-motor, 2-stage structure with a 720–1200 mm height range, 100 kg maximum load, 20 mm/s lifting speed, <50 dB operating noise and a 1200–1600 mm adjustable frame. These specifications cover the main user height, desktop, equipment load and operating requirements for this configuration.

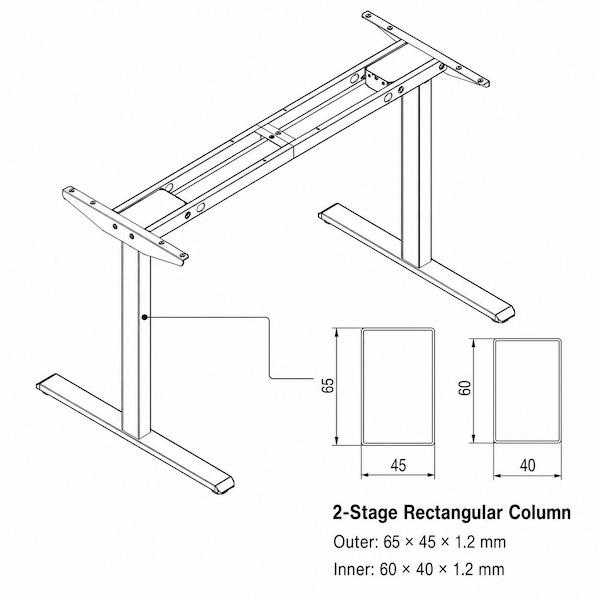

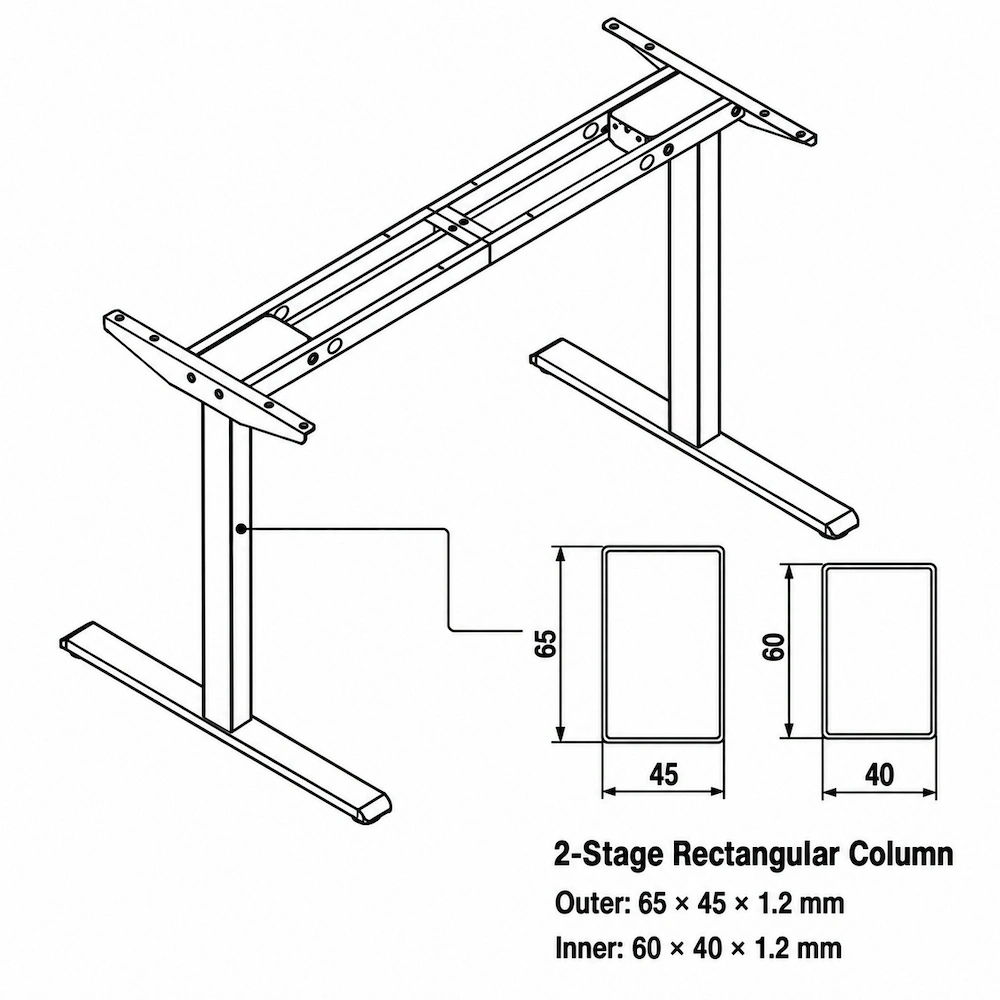

meige economic dual motor 2 stage desk frame with rectangular column dimensions

2-stage rectangular column — section dimensions shown above

Height Range

720–1200 mm

Check that this range covers the seated and standing working heights required by the intended users.

Maximum Load

100 kg max

Include the desktop, equipment and accessories when checking the planned load. Rated load and overall desk stability are separate considerations.

Frame Adjustment for Desktop Planning

1200–1600 mm adjustable frame

Telescopic beam

Use the frame adjustment range when planning the desktop. The frame adjustment range does not define the final desktop size. Final fit also depends on desktop depth, thickness, material, fixing method and weight.

Movement & Operating Noise

20 mm/s lifting speed

<50 dB operating noise

These values define the lifting speed and operating-noise level of the core Economic configuration.

Frame Structure

Dual motor · 2-stage rectangular columns

Outer column: 65 × 45 × 1.2 mm

Inner column: 60 × 40 × 1.2 mm

Foot section: 60 × 20 × 1.8 mm

Powder coating: 60–70 μm

Foot length: Customizable

Control & Protection Features

Digital height display · Child lock · Obstacle rebound · Over-current protection

K1 and KC are optional handset choices and are compared in the next section.

Obstacle rebound is an assistive function and should not be treated as complete collision protection.

Configuration reviewed: Meige Dual-motor 2-stage — Economic

Choose Your Meige Economic Layout and Handset

Meige Economic is available in multiple workstation layouts, with K1 and KC offered as optional handset choices. Meige Economic layouts use the same core frame and control architecture, so the layout primarily changes the number and arrangement of work positions rather than the lifting system.

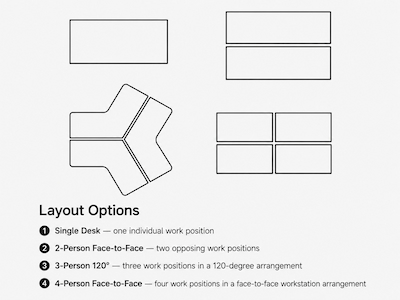

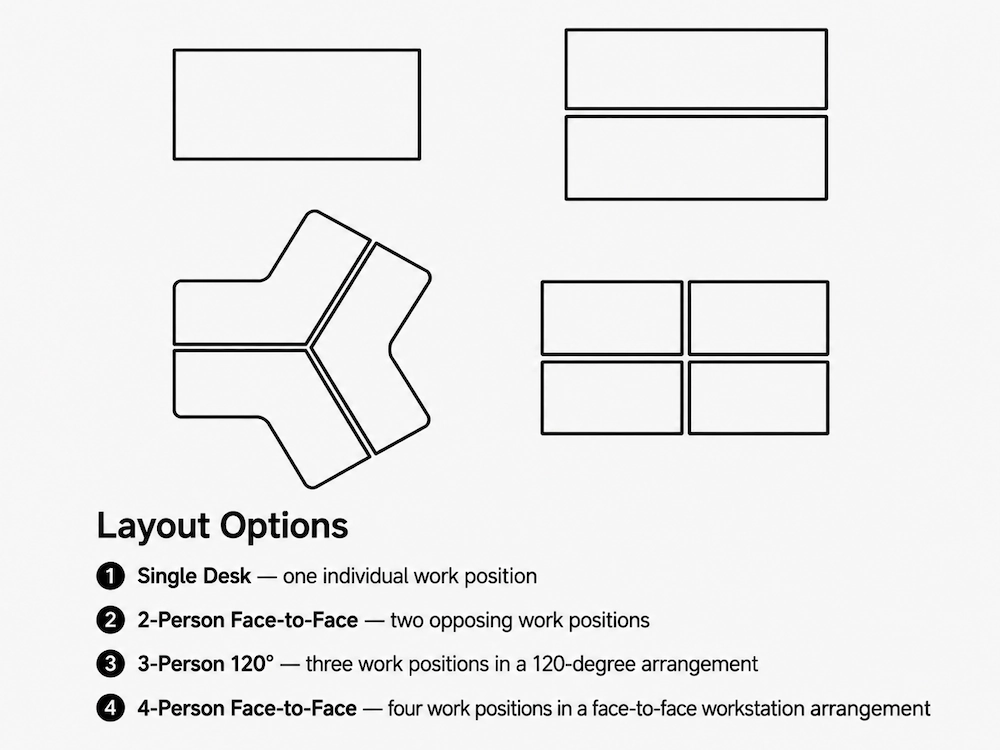

meige economic workstation layouts including single desk 2 person face to face 3 person 120 degree and 4 person face to face configurations

Single Desk · 2-Person Face-to-Face · 3-Person 120° · 4-Person Face-to-Face

For face-to-face layouts, the opposing work positions can adjust independently. The beam arrangement is designed around the leg-space requirements between opposing positions.

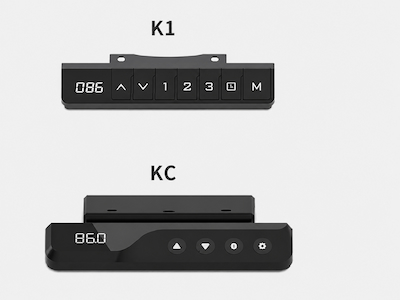

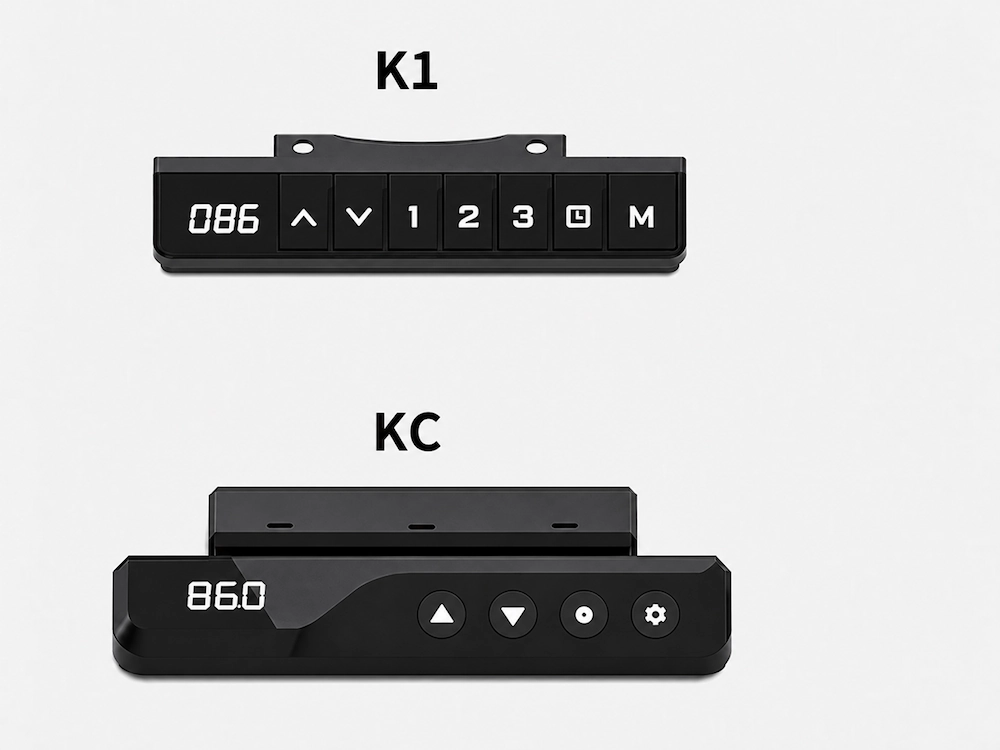

k1 and kc optional handsets for meige economic height adjustable desk configurations

Optional Handset Choices

Digital display · Sedentary reminder · 3 height memory positions

Digital display · Sedentary reminder · 2 height memory positions

Both are optional handset choices for Meige Economic configurations. Both handsets include a digital display and sedentary reminder. K1 provides three height memory positions, while KC provides two.

Confirm Your Meige Configuration for Quotation

Provide the project details needed to confirm the selected Meige configuration and prepare an accurate quotation.

Confirm the Selected Configuration:Meige Dual-motor 2-stage — Economic or Meige Dual-motor 2-stage Face-to-Face — Economic

Confirm the selected configuration, workstation layout, product SKU and required handset/control options for your project.

Define Your Project Requirements

• Quantity and destination market

• Workstation layout and required quantity by layout

• Desktop size, depth, thickness, material and fixing method

• Planned desktop, equipment and accessory load

• Voltage and plug requirements

• Required handset/control functions

For the Face-to-Face Economic configuration, the maximum load is 100 kg per frame.

Request the Documents Needed for Your Project

Specify any drawings, product specifications or test documents required for the selected configuration and destination market.

Documentation is configuration-specific. Meige and Mige are separate product series, and their drawings, specifications and test documents are not interchangeable.

Providing these details helps us prepare an accurate quotation for the selected Meige configuration.

Request Meige Configuration Confirmation & Quotation
