1 Person Office Pod
A private space for calls, video meetings and focused work.

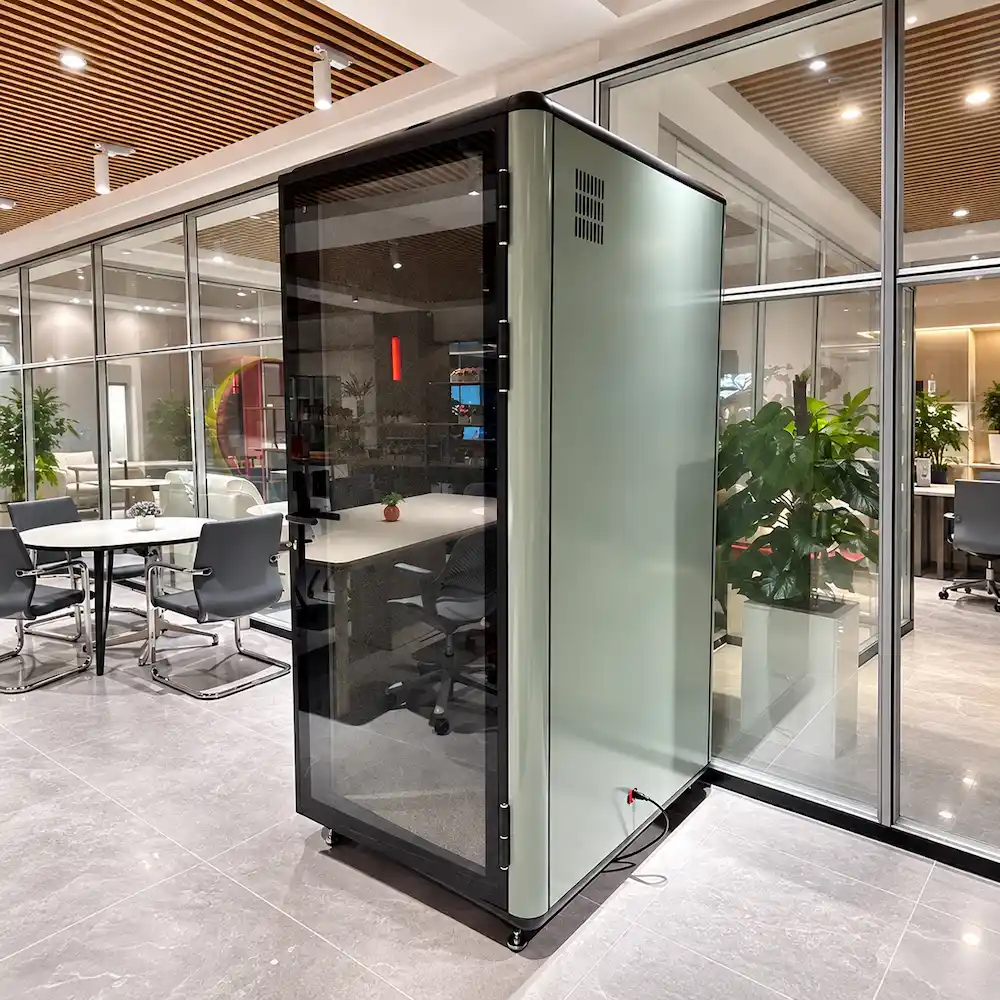

The 1 Person Office Pod gives one person a private, enclosed space for everyday calls, online meetings and short periods of focused work within an open office or shared workplace.
Best for
- Private calls
- Video meetings
- Focused work
- High-call open-office environments
Need space for more people? Explore our 2 Person, 4 Person and 6 Person Meeting Pods, or compare capacities to find the right mix for your office.

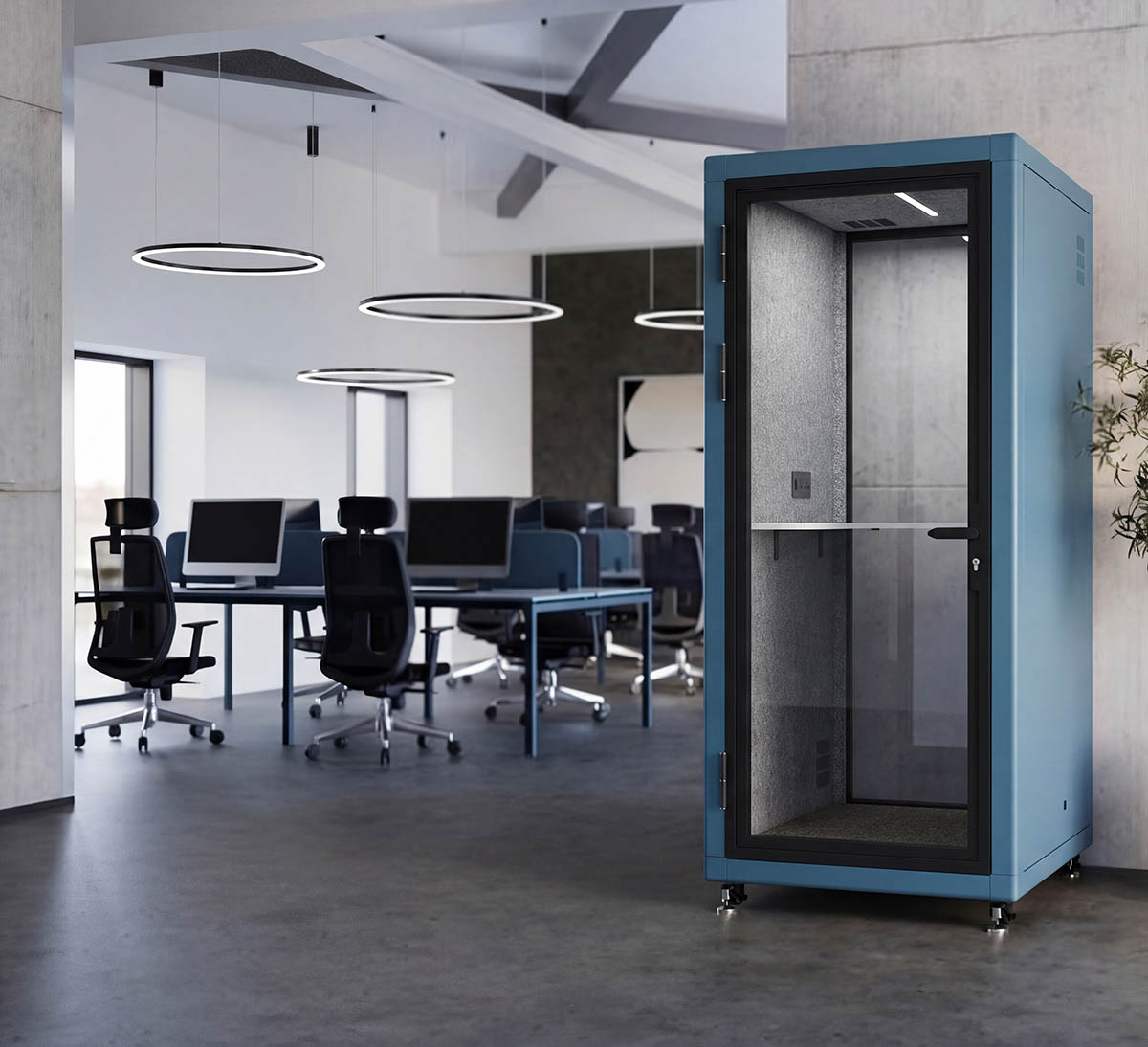

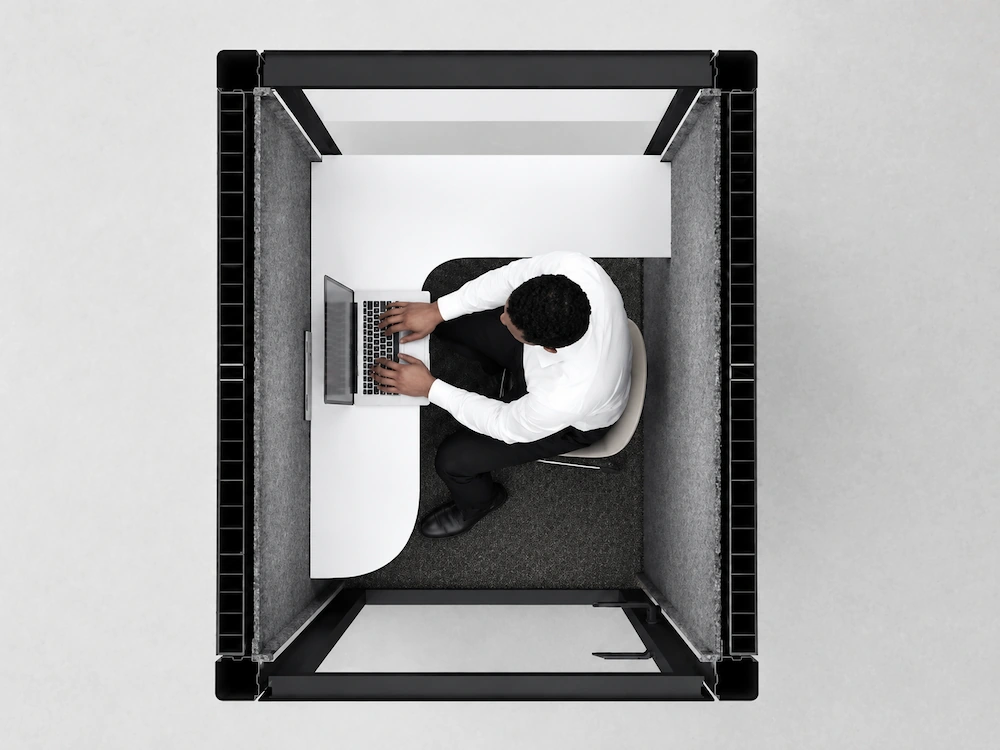

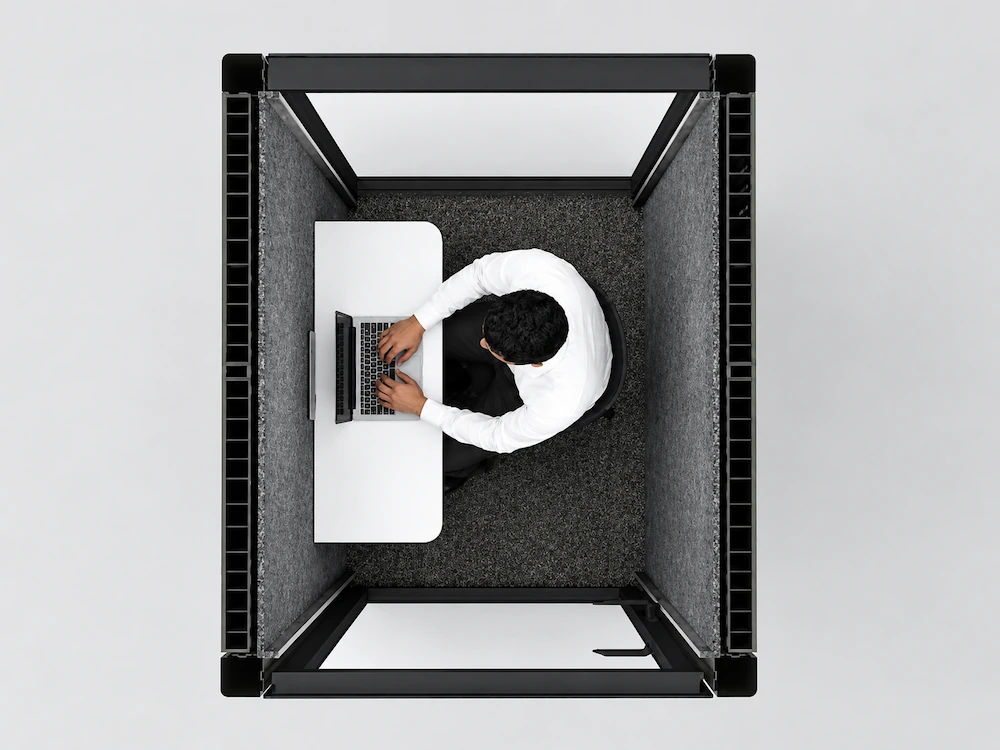

Choose Your 1P Interior Layout
Choose between two interior work-surface layouts for the 1 Person Office Pod.
Compare 1P Dimensions and Interior Space
Our 1 Person Office Pod is available in three models. Below are the exterior and interior dimensions for each 1P model. Model B and Model C share the same dimensions, while Model A has a slightly different depth. All three models have the same height.
1P Dimension Comparison
All dimensions are shown in millimetres as width × depth × height.
| 1P Model | Exterior Dimensions (W × D × H) | Interior Dimensions |
|---|---|---|
| Model A | 1000 × 1159 × 2200 mm | 840 × 1014 × 2040 mm |
| Model B | 1000 × 1200 × 2200 mm | 840 × 1056 × 2040 mm |
| Model C | 1000 × 1200 × 2200 mm | 840 × 1056 × 2040 mm |
- Use the exterior dimensions to check the available floor area and planned pod location.
- Use the interior dimensions to see how much space is available inside the pod.
- Before confirming your order, please check the dimensions carefully and note the differences between the three models.
- If doorway, elevator or delivery access may be limited, ask our project team to review the site conditions before ordering.

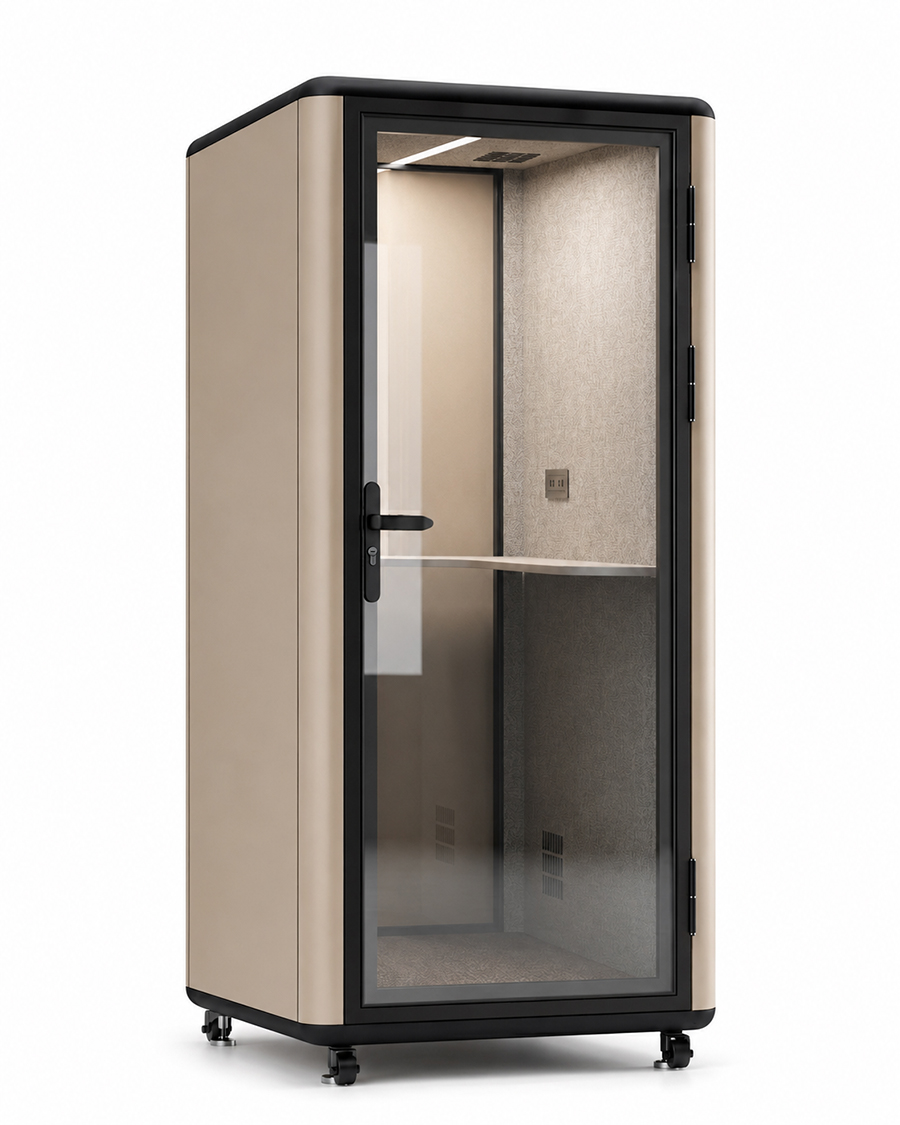

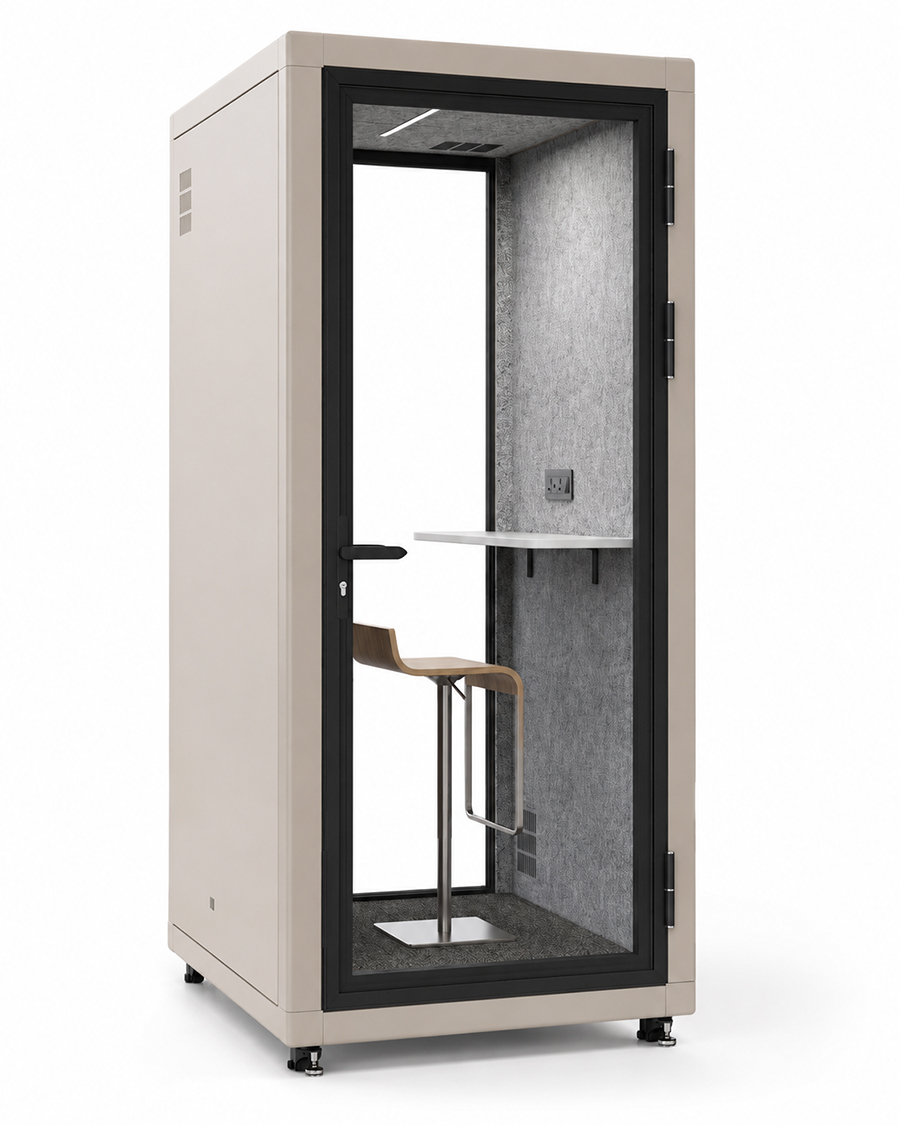

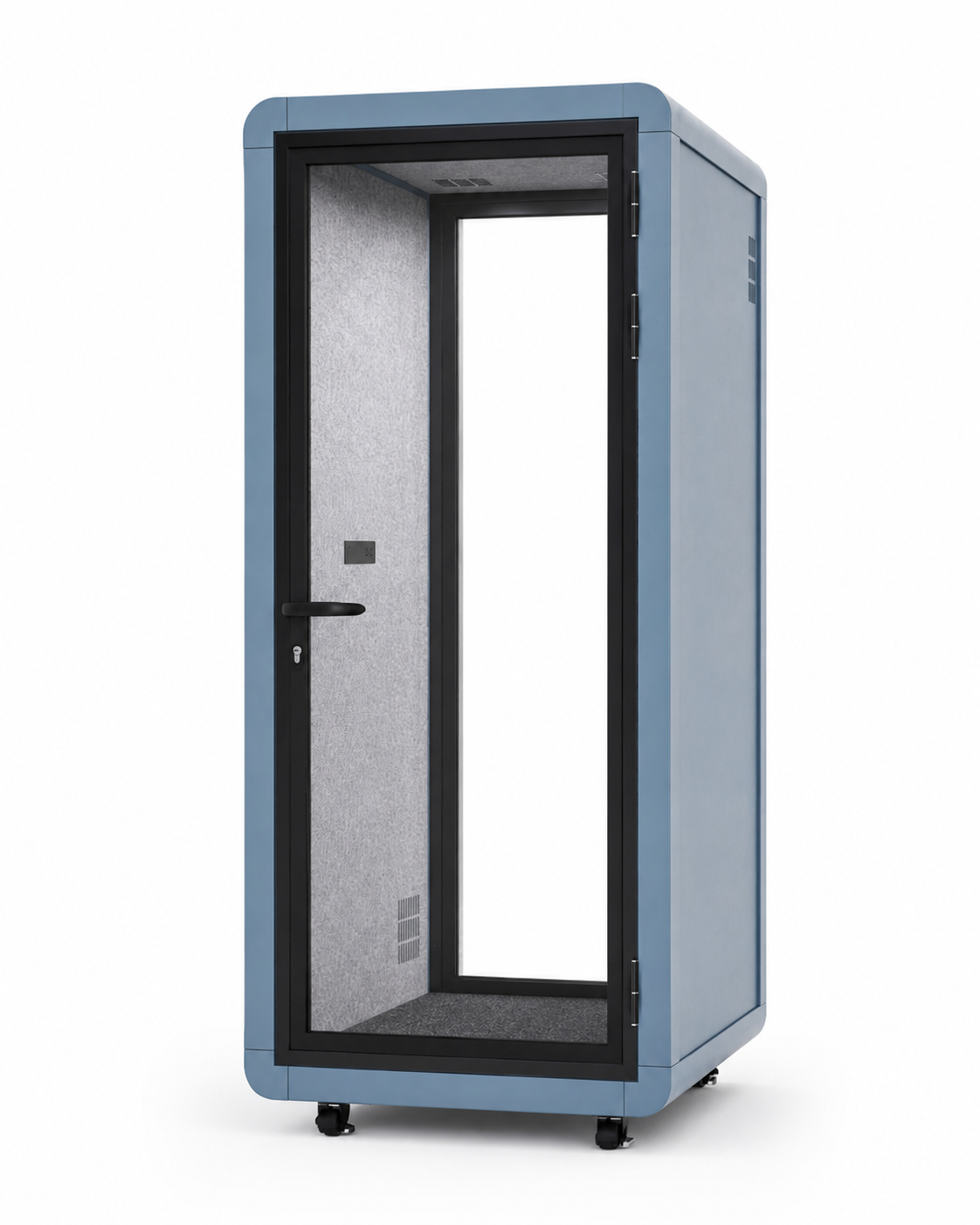

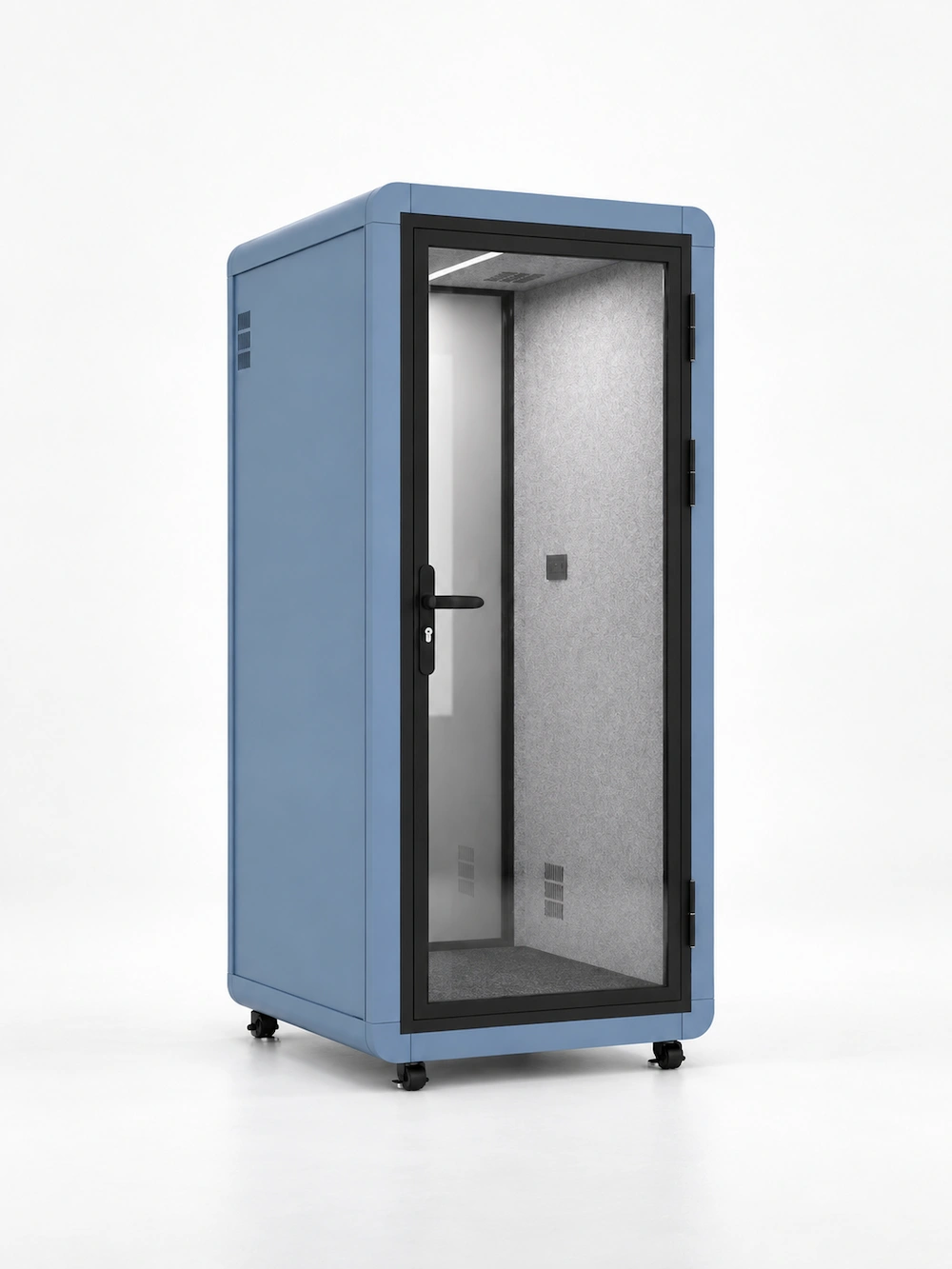

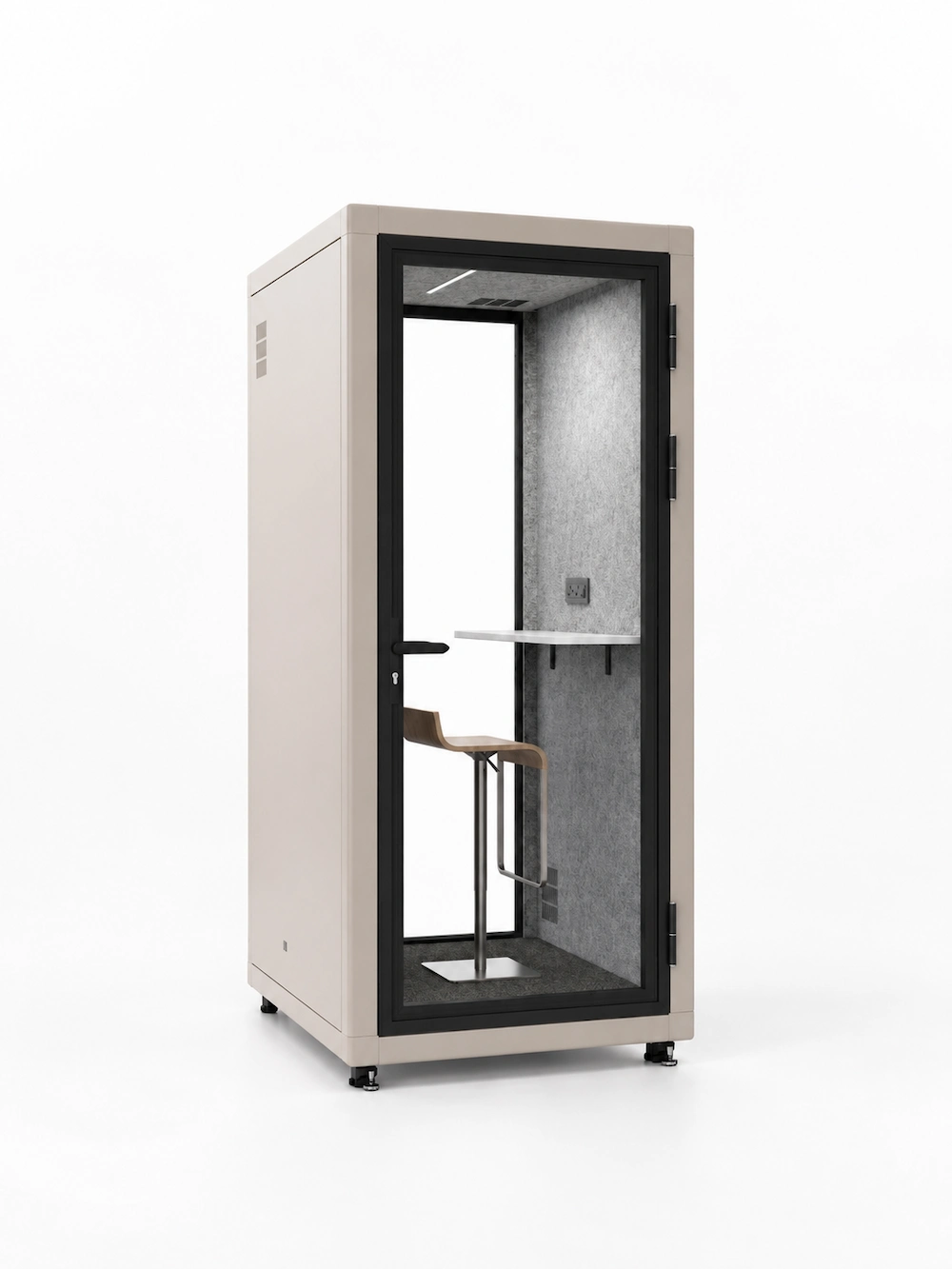

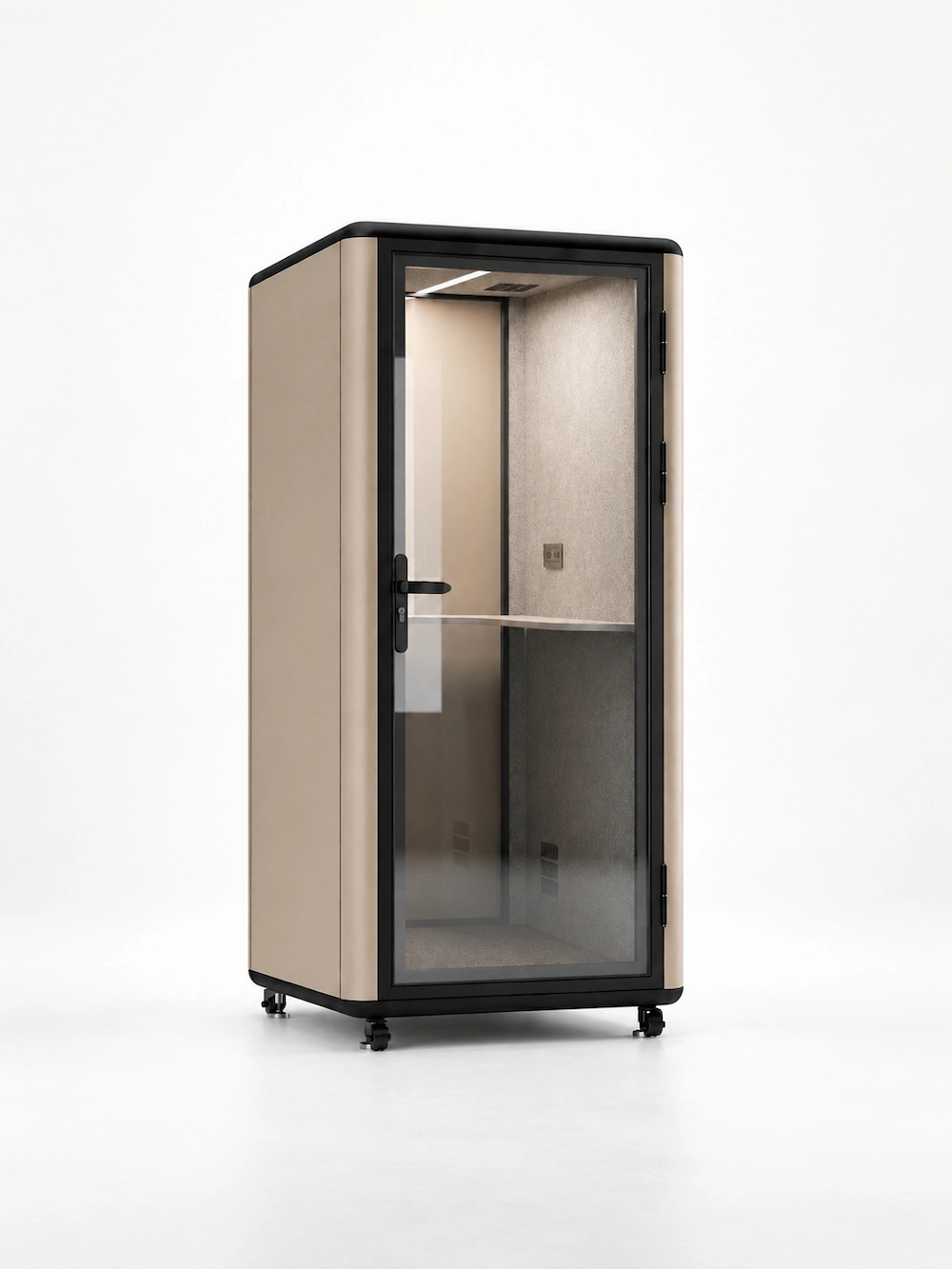

Choose Your 1P Exterior Series
Compare Model A, Model B and Model C side by side, then choose the exterior form that best suits your project. Each model represents a different exterior design direction—not a quality or performance level.
Already have a preferred model? Include it in your project inquiry so our team can prepare the right specification and quotation.
1 Person Office Pod Configuration
Configure Your 1 Person Office Pod
Explore the main finish and system options for the 1 Person Office Pod, then include your preferred combination in your project specification or quote request.
- Finishes
- Ventilation
- Lighting
- Power & Control
- Door Hinge
- Door Handle
- Caster
- Outer power
- Glass
- Exterior
- Interior
- Carpet

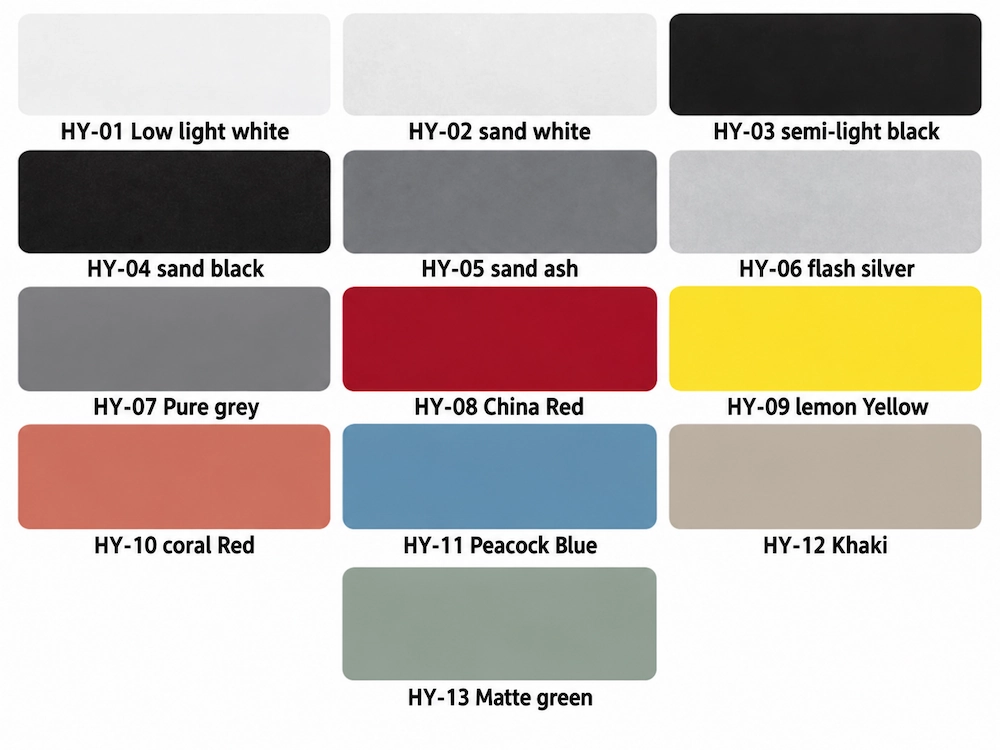

Exterior Colors
Choose from 13 standard exterior colors.
The metal exterior is finished with AkzoNobel powder coating.
SGS heavy-metal test reports are available.

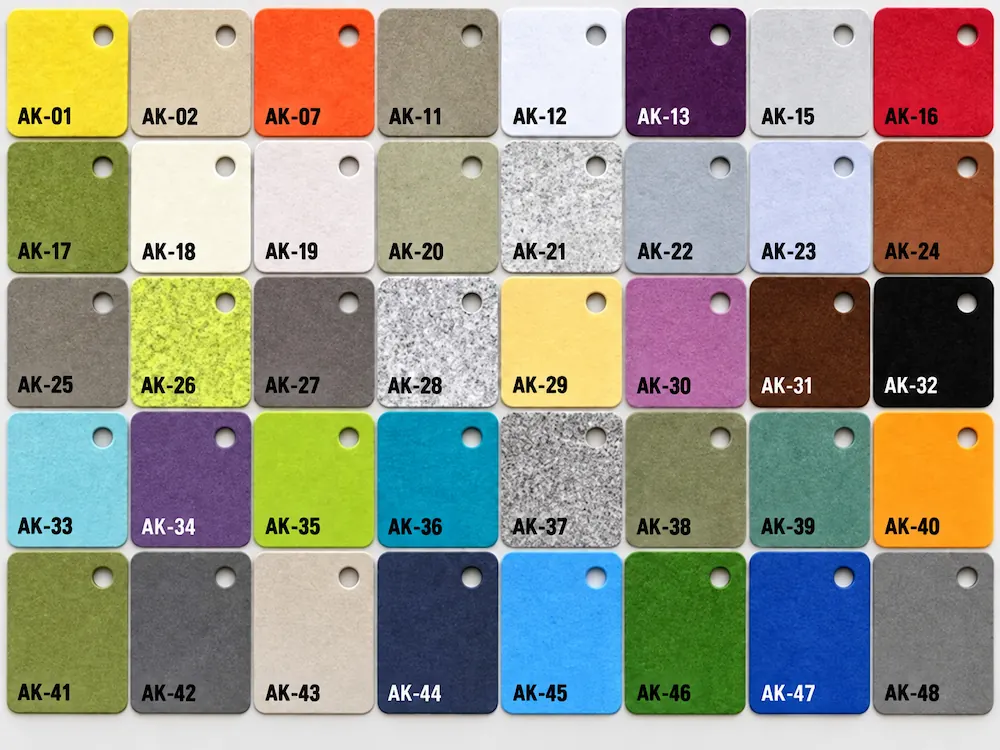

Interior Colors
Choose from 34 standard interior colors. Standard colors are available without MOQ.
The interior PET acoustic panel is 12 mm thick. VOC test reports are available.
Select the color you want to include in your project specification.

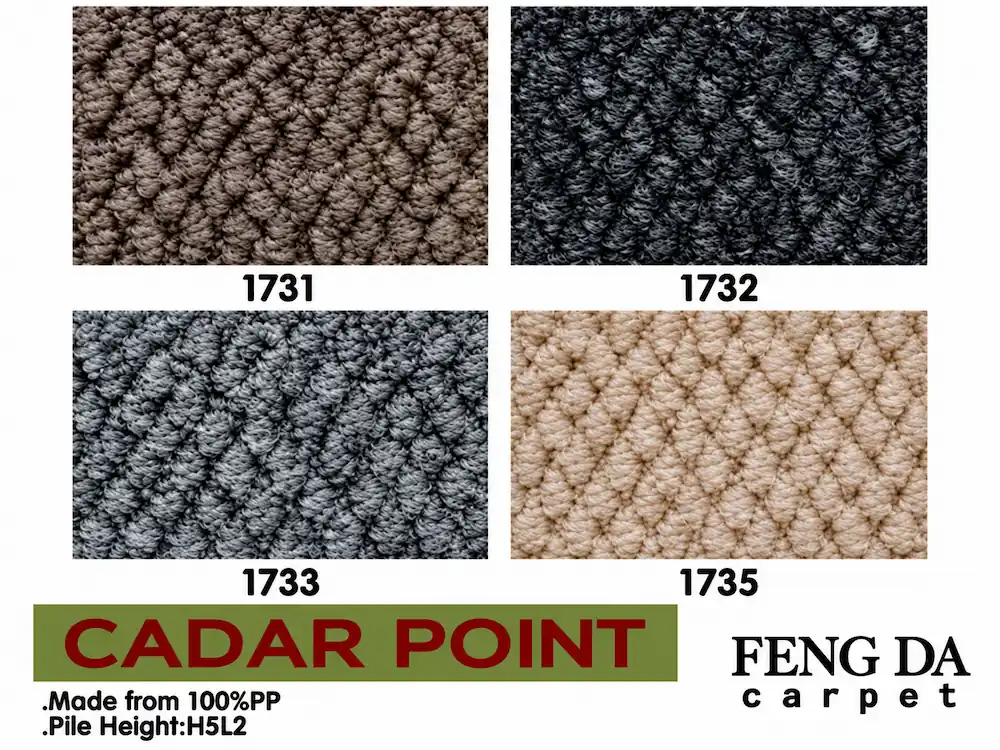

Carpet Colors
Choose from 4 standard carpet colors.
The carpet is 10 mm thick, selected to support sound absorption and acoustic performance inside the pod. SGS VOC test reports are available.
All four carpet options are stain-resistant and water-resistant. Custom sizes are available with no MOQ.
Select the carpet color and size you prefer for your project.

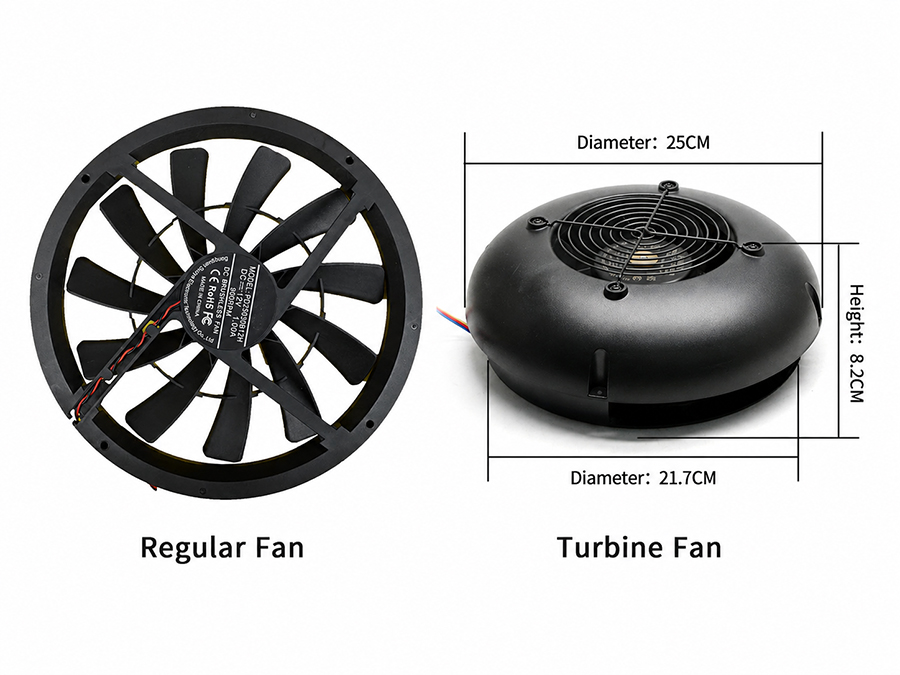

- Turbo Fan
- Standard Fan
Turbo Fan
The turbo ventilation option uses a 24V centrifugal fan to provide higher airflow and stronger air circulation inside the pod.
- Fan size: 175 × 175 × 69 mm
- Voltage: 24V
- Air volume: Up to 276.4 CFM
- Noise level: 33.5–51.8 dB(A), depending on operating speed
A suitable option for high-use environments or projects that want stronger ventilation performance.

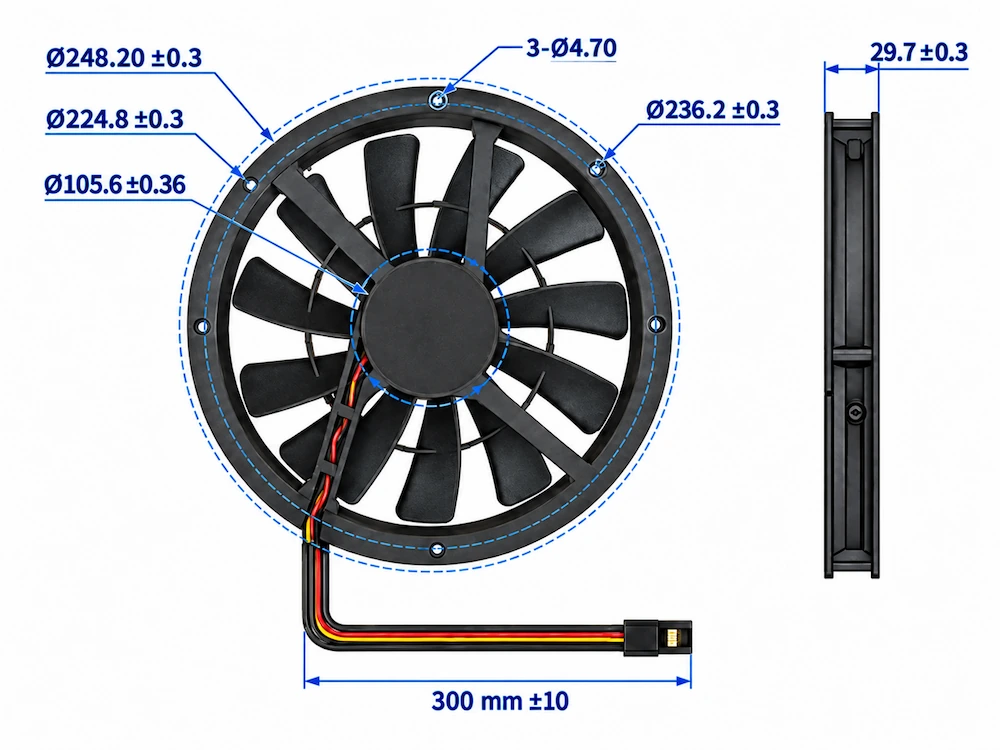

Standard Fan
The standard ventilation system uses a low-noise DC brushless fan for everyday airflow inside the pod.
- Fan size: 250 × 250 × 30 mm
- Rated airflow: 116.6 CFM
- Fan speed: 900 RPM
- Noise level: 22.13 dB(A)
- Rated voltage: 12 VDC
- Linear Light
- Round Light

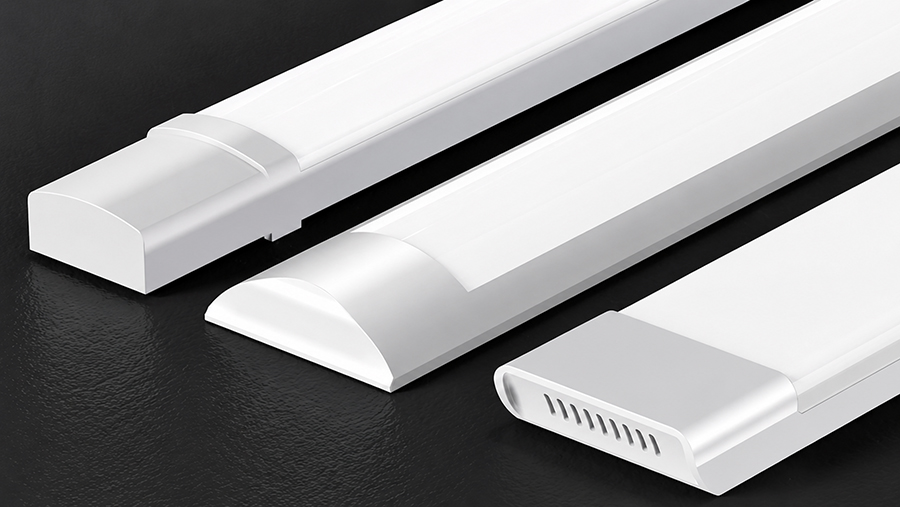

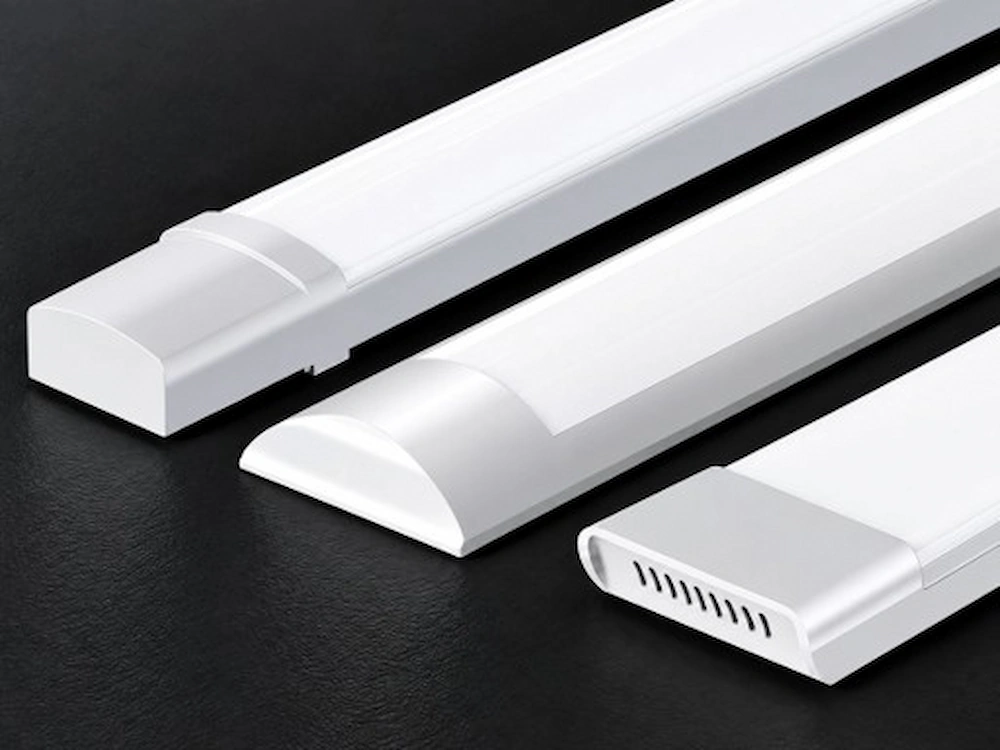

Linear LED
The linear LED light measures 500 × 25 × 12 mm and is rated at 15W.
- Size: 500 × 25 × 12 mm
- Power: 15W
- Color temperature: 6000K
- Voltage: DC 12V
- Brightness: Adjustable
- Color temperature adjustment: No
- Power supply: 12V power supply included

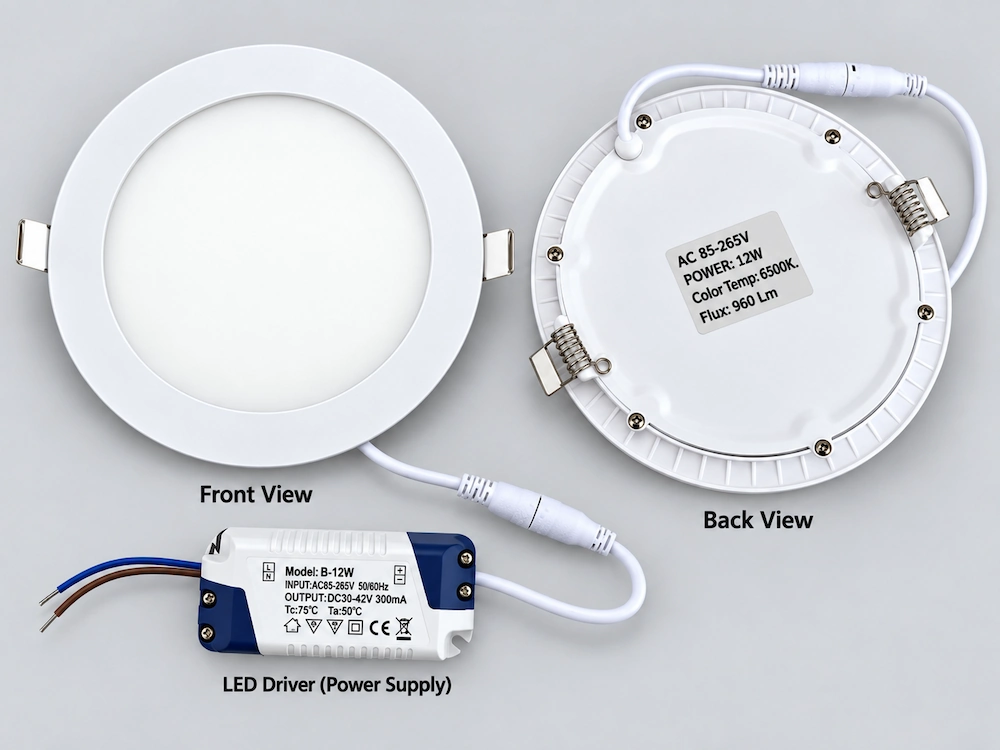

Round LED
12W · 6500K White Light · 220V · Transformer Included
- Diameter: 155 mm
- Thickness: 12 mm
- Brightness: Adjustable
Suitable for everyday calls, video meetings and focused work inside the pod.
- Standard
- Mid-Level
- High-End

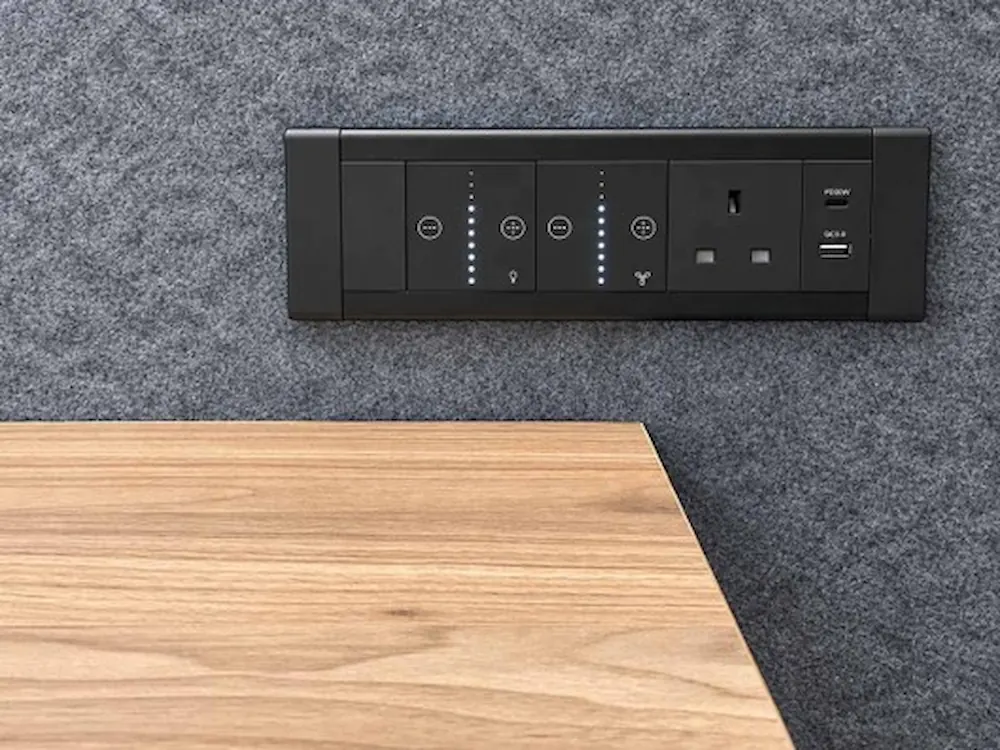

Mid-Level Control

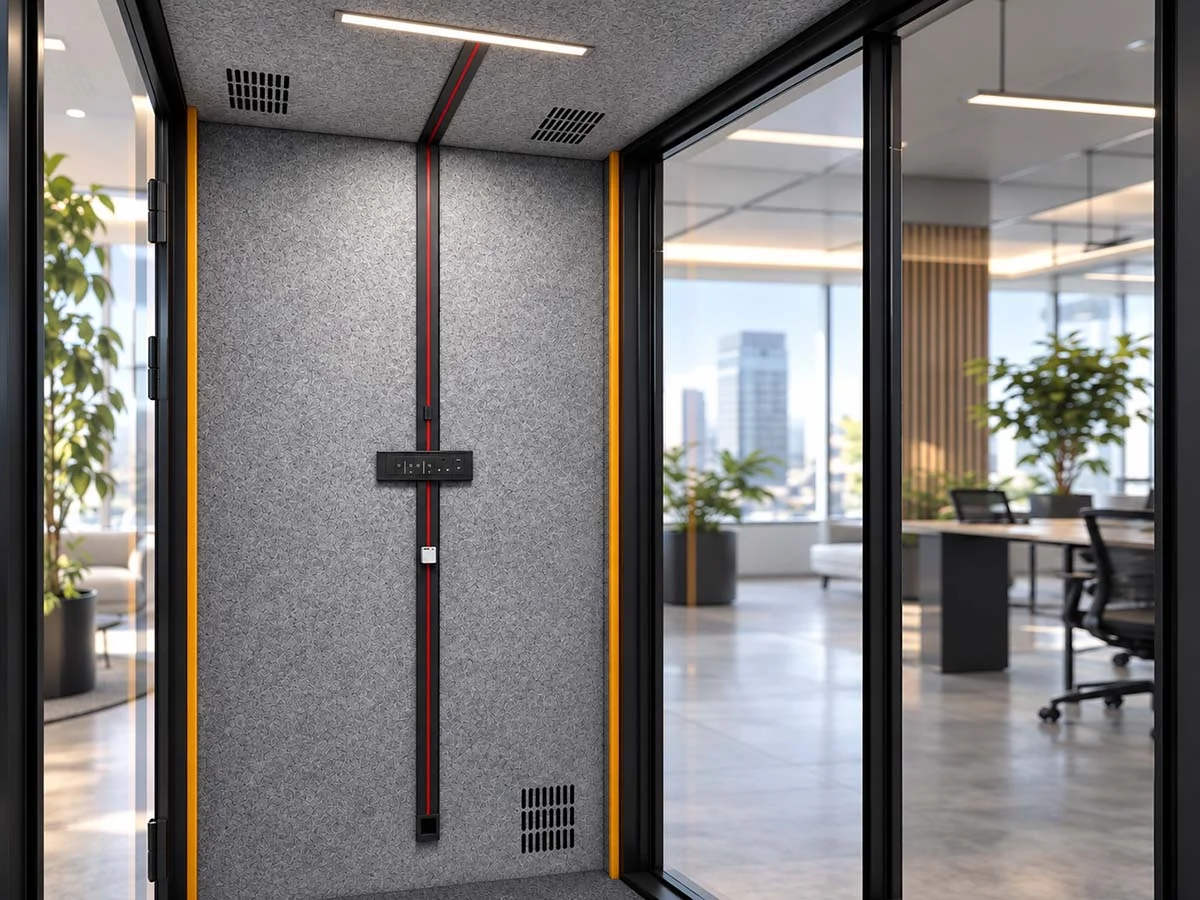

The Mid-Level control system combines manual knob control with integrated power and charging.
Main Functions
- Light dimming knob
- Ventilation speed control knob
- Central on/off control
- Automatic ventilation cycle
- PIR motion sensor support

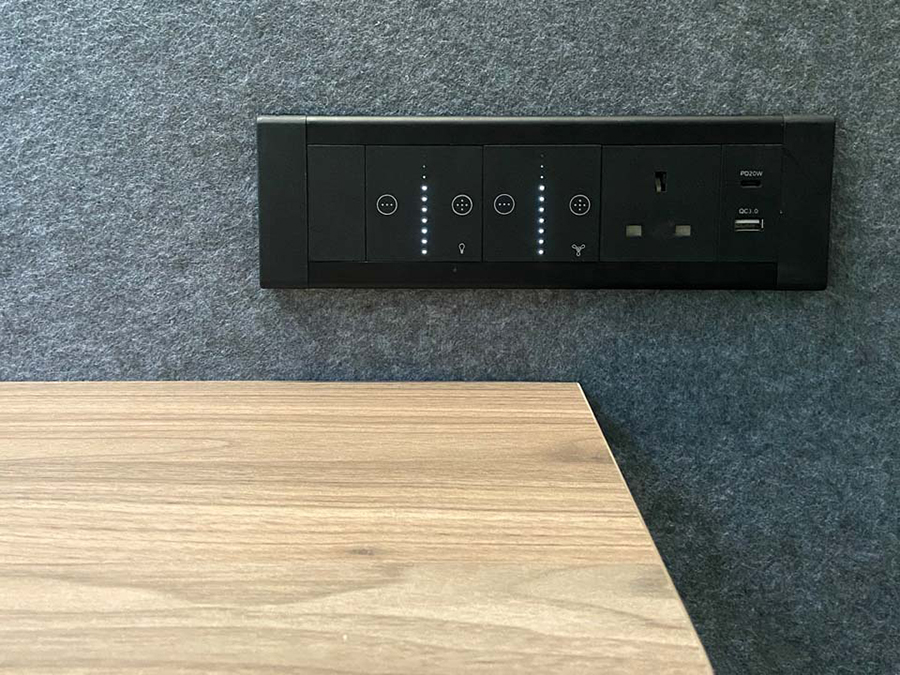

Power & Charging
- 1 universal power socket
- 1 PD 20W fast-charging module with USB-A + USB-C
- Rated current: 10A
Control Box
- 75W standard
- 100W / 200W upgrade options
Automatic Ventilation
- Ventilates automatically for 5 minutes every 30 minutes
Smart Touch Control
The Standard configuration uses a 7-inch smart touch panel for centralized pod control.
Control Panel
- 7-inch touch panel
- Panel size: 183 × 118 × 29.9 mm
- Cutout size: 172 × 110 mm
- Central on/off control
- Automatic ventilation control
Power & Charging
- 1 universal power socket
- 1 PD 20W fast-charging module with USB-A and USB-C
- Rated current: 10A
- Socket cutout size: 130.5 × 72 mm
Automatic Ventilation
- Automatic ventilation cycle: 5 minutes every 30 minutes

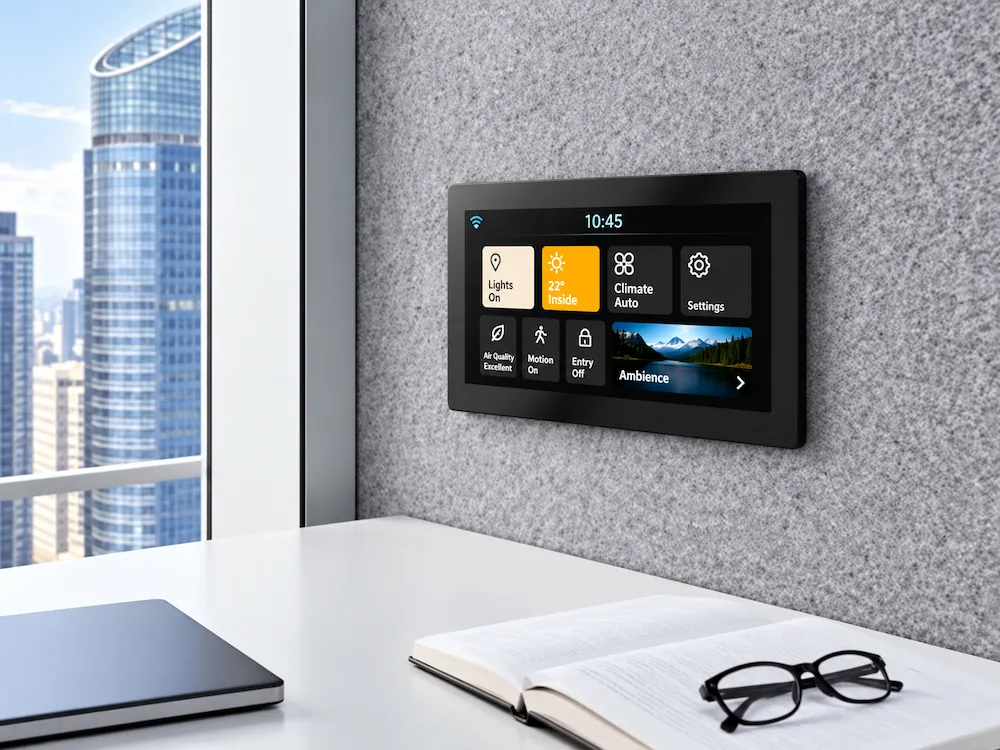

High-End Smart Touch Control
The High-End control system uses a 7-inch smart touch panel for centralized pod control.
Smart Touch Panel
- 7-inch touch panel
- Panel size: 183 × 118 × 29.9 mm
- Cutout size: 172 × 110 mm
- Central on/off control
- Automatic ventilation control
Power & Charging
- 1 universal power socket
- 1 PD 20W fast-charging module with USB-A + USB-C
- Rated current: 10A
- Socket cutout size: 130.5 × 72 mm
Control System
- 150W single-channel power supply
- 3 m 6-core control cable
Automatic Ventilation
- Ventilates automatically for 5 minutes every 30 minutes

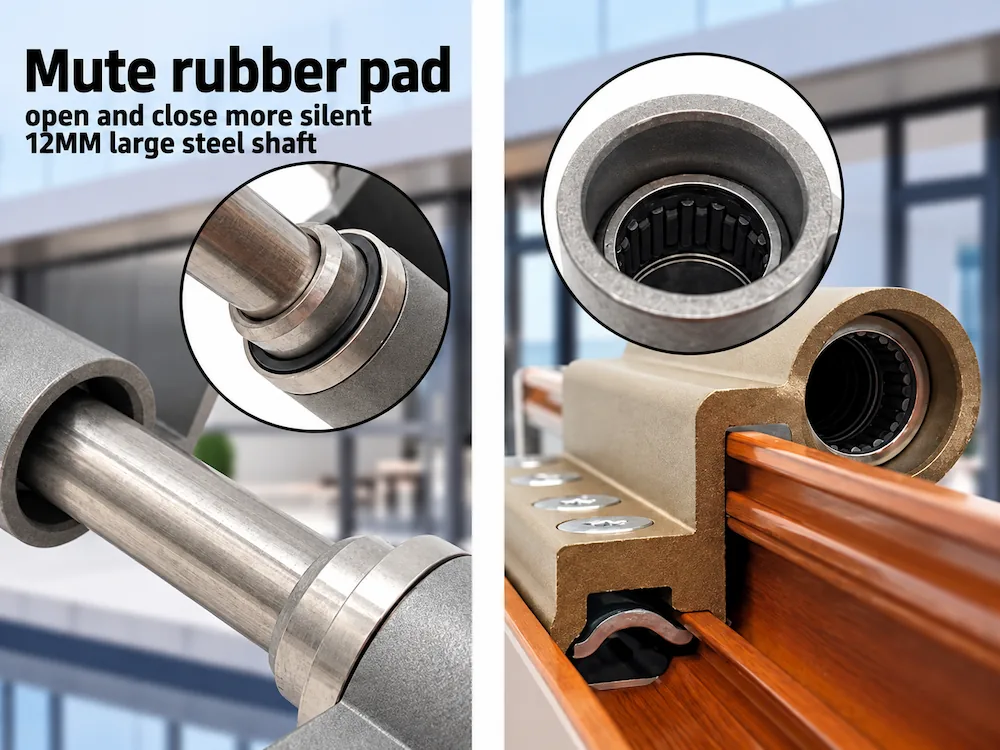

Heavy-Duty Hinge
The hinge is designed and manufactured in accordance with European door and window standards and has an SGS test certificate.
It connects directly to the door frame and can be installed within 30 seconds without adjustment.
The surface is finished with black fluorocarbon paint and is designed for outdoor use for up to 5 years without fading.
- Load capacity: 150 kg per hinge
- Hinges per door: 3 pcs

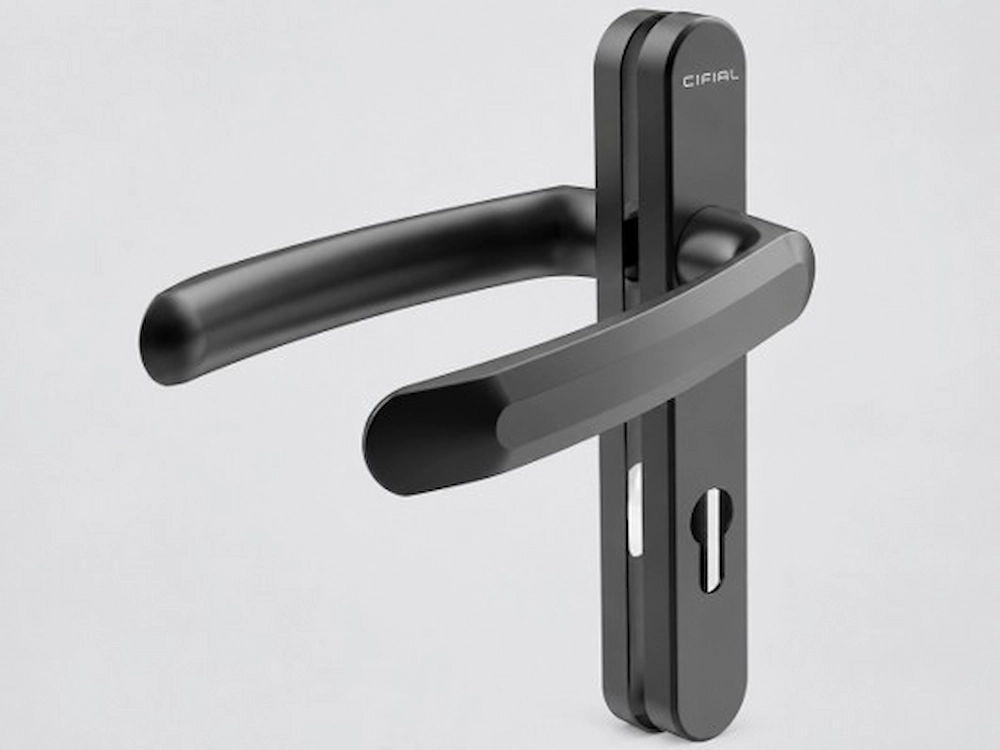

Glass Door Handle
The door handle uses a European-standard multi-point locking system, specifically designed for the door and window construction industry.
- Material: Aluminum alloy
- Surface finish: Black fluorocarbon paint
- Resistance: Acid-resistant and alkali-resistant
When locking the door, lifting the handle upward presses the door leaf tightly against the sealing strip, helping to improve the sealing performance.

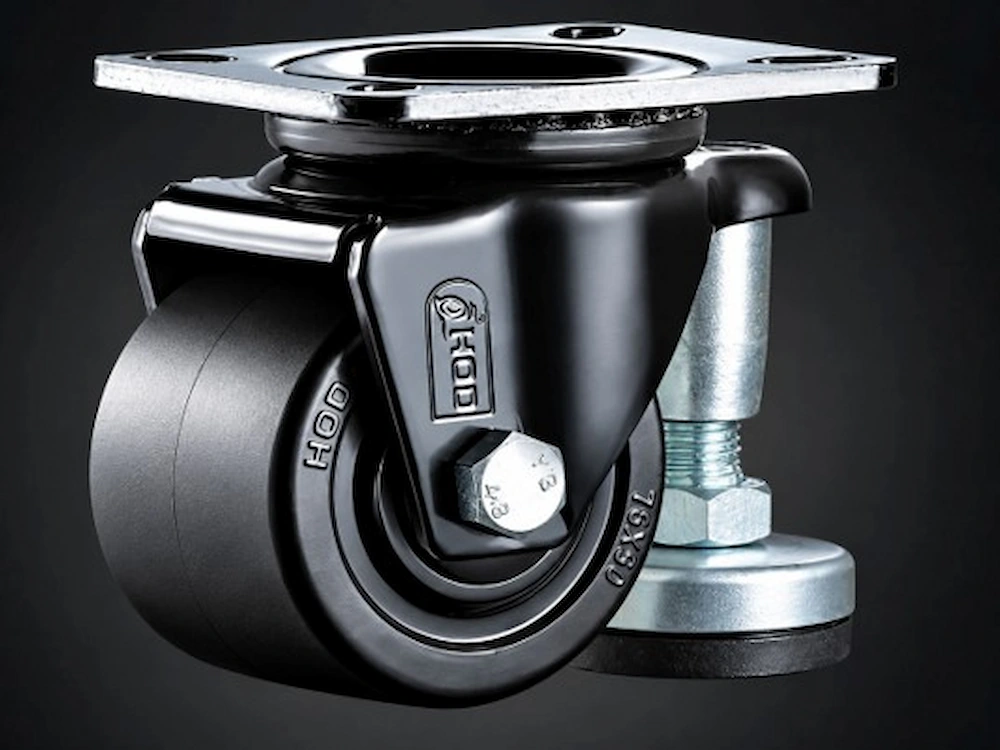

Heavy-Duty Caster with Adjustable Leveling Foot
This heavy-duty caster has a load capacity of 380 kg per caster. A test certificate can be provided.
The caster is a swivel caster.
Once the casters are installed, the 1P, 2P, 4P and 6P pods can be moved freely.
The caster is installed at the bottom of the pod. The adjustable leveling foot can be used to easily adjust the pod to a level position.

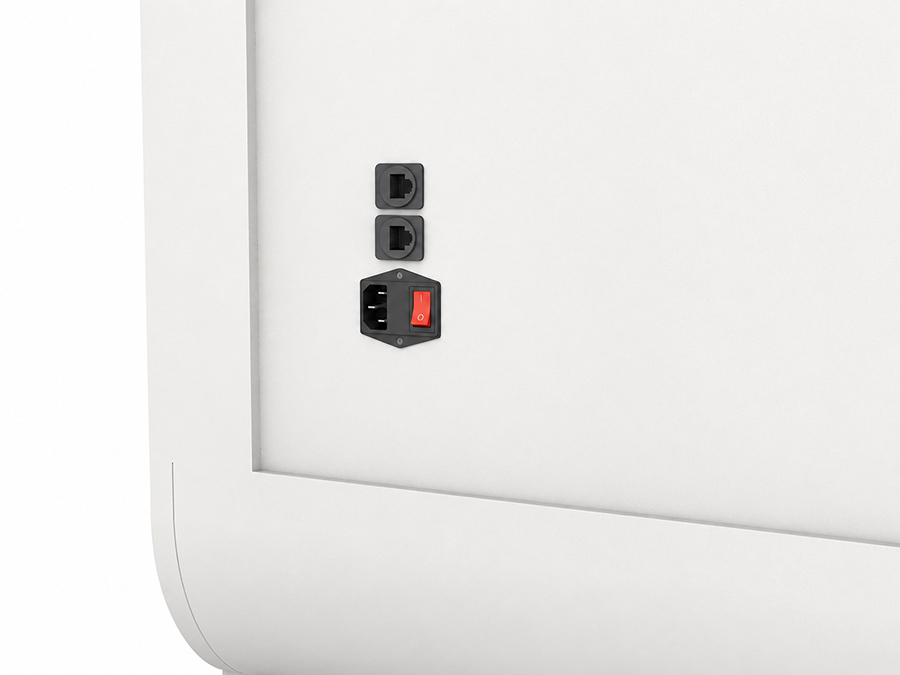

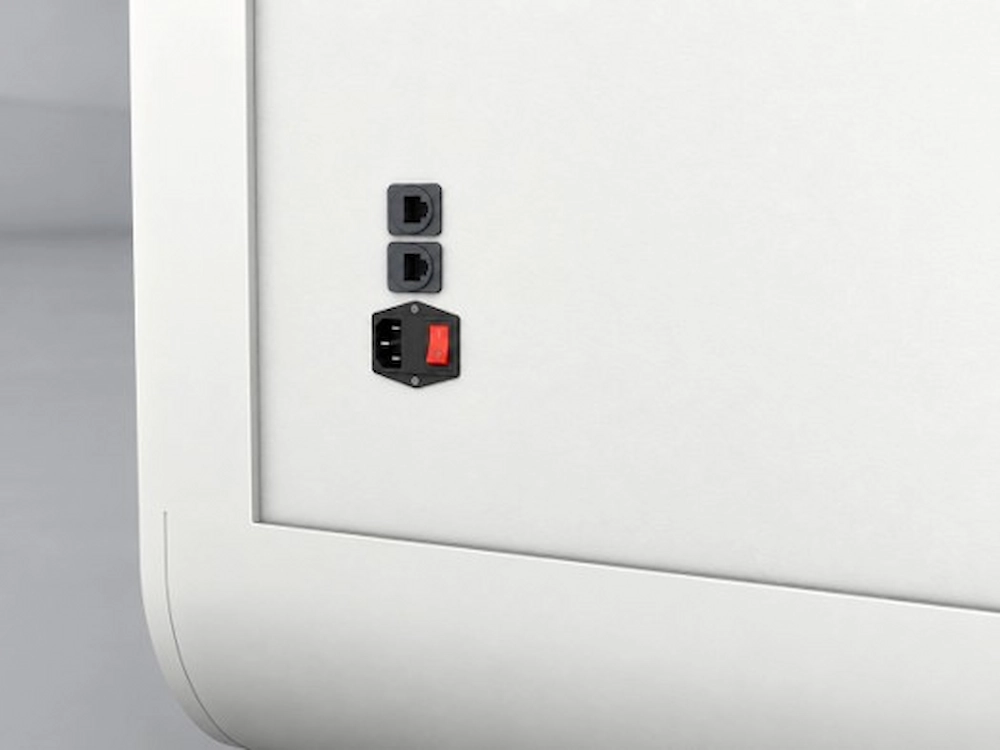

External Power and Network Connection
The external power supply and network connection currently use one standard configuration.
The external power cable is supplied with a standard length of 1.8 m. The plug can be changed according to the destination market and project requirements.
The external power cable or network cable can also be customized in length, from 3 m to 5 m, with no MOQ requirement.

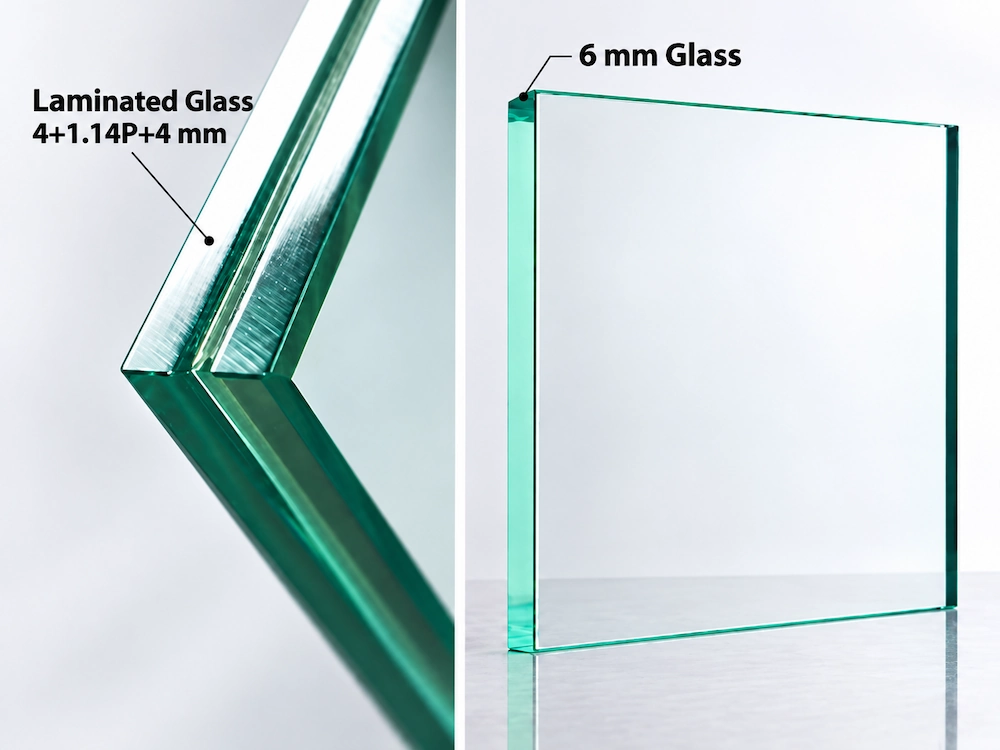

- Single & Laminated Glass
- Insulated Glass
Glass Options
Based on the acoustic requirements of different markets and users, we offer different glass options.
Standard configurations:
- Option 1: 6 mm single glass, with overall pod sound insulation of approximately 22 dB.
- Option 2: Laminated glass, with overall pod sound insulation of approximately 28 dB.

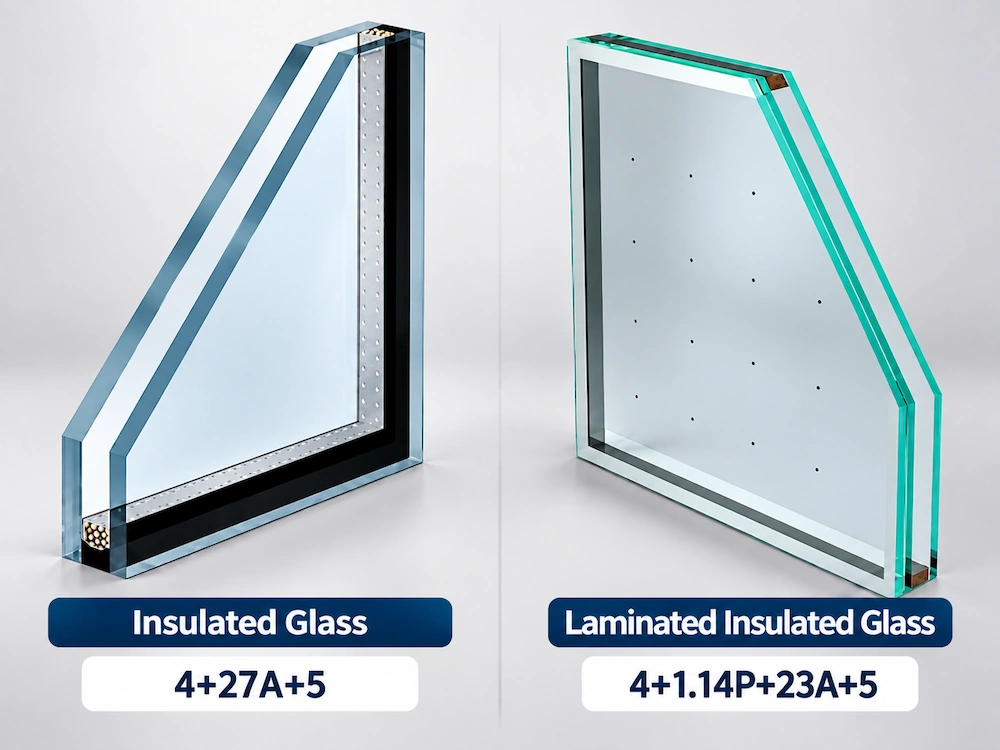

Glass Options
Based on the acoustic requirements of different markets and users, we offer different glass options.
Standard configurations:
- Option 3: Insulated glass, with overall pod sound insulation of approximately 25 dB.
- Option 4: Laminated insulated glass, with overall pod sound insulation of approximately 33 dB.
1P Technical Setup
See how the main systems are arranged in the 1 Person Office Pod.

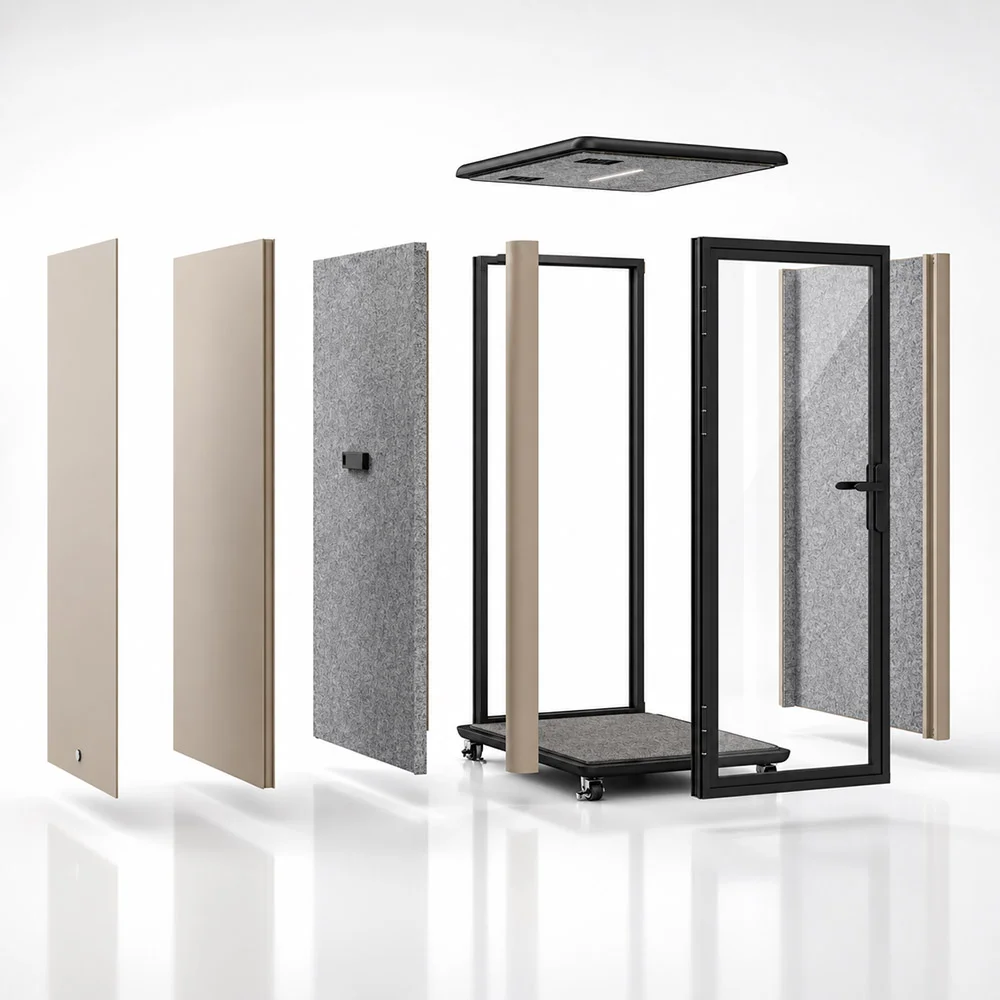

1P Structure Overview
See the main panels, frame, door system and ceiling module that make up the 1 Person Office Pod.
Modular Panel System

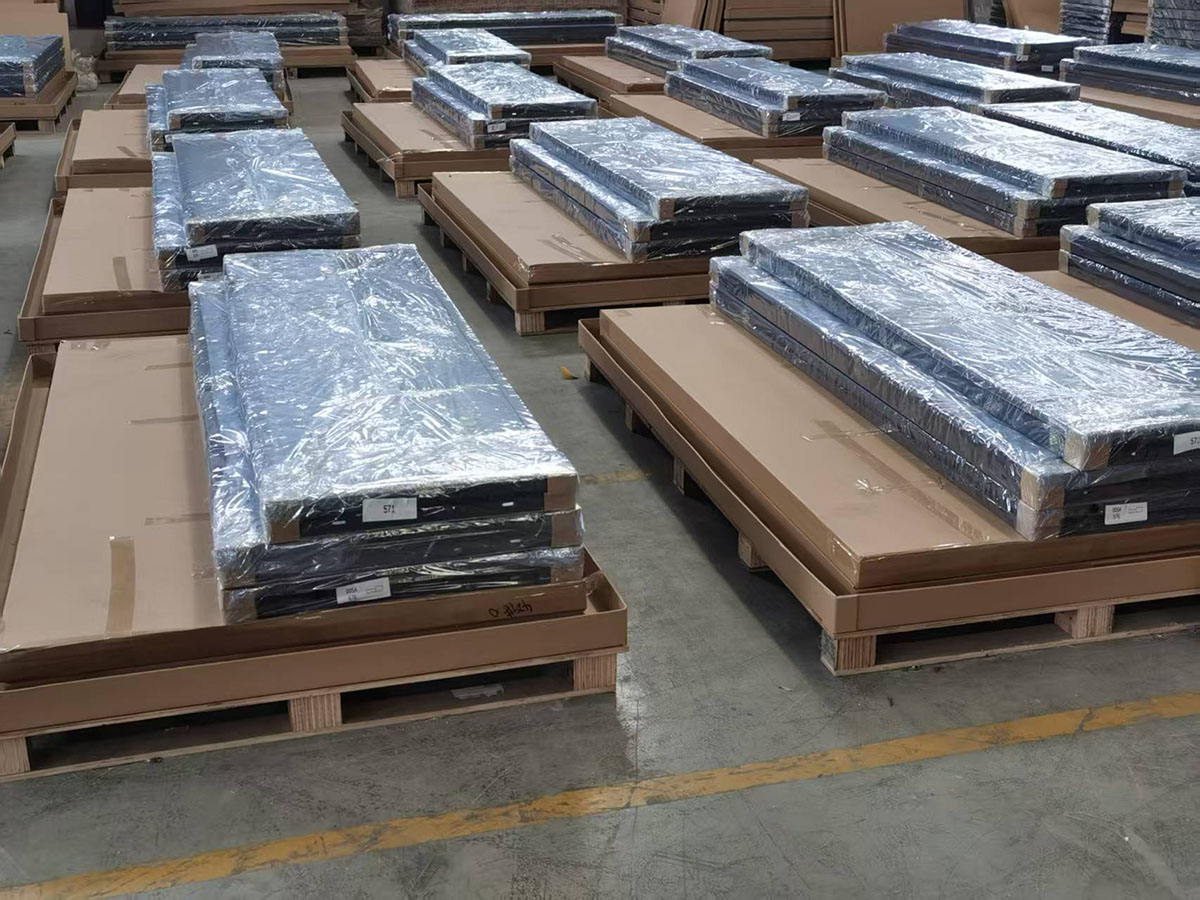

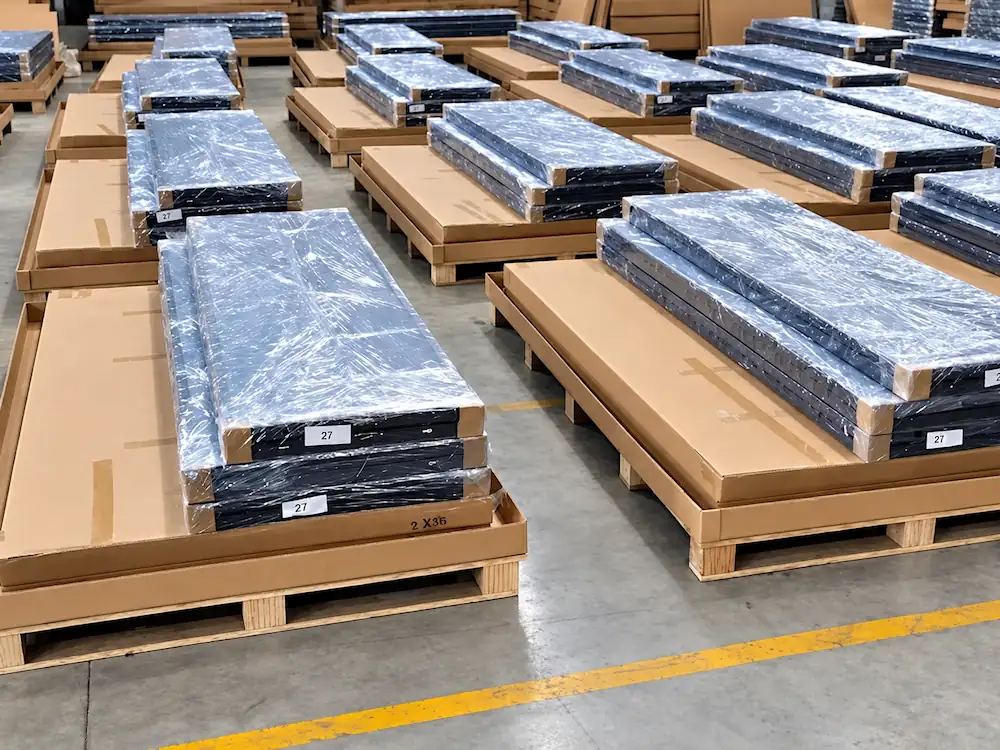

The pod is built with 1 mm exterior steel panels, a high-density hollow core with 12 mm PET, glass sections and base components. These parts are designed for KD assembly and are installed on site.
Frame & Door System
The main frame, door frame, hinges, lock and sealing system form the booth’s primary access structure and support everyday opening and closing.
Ceiling, Base & Utility Interfaces

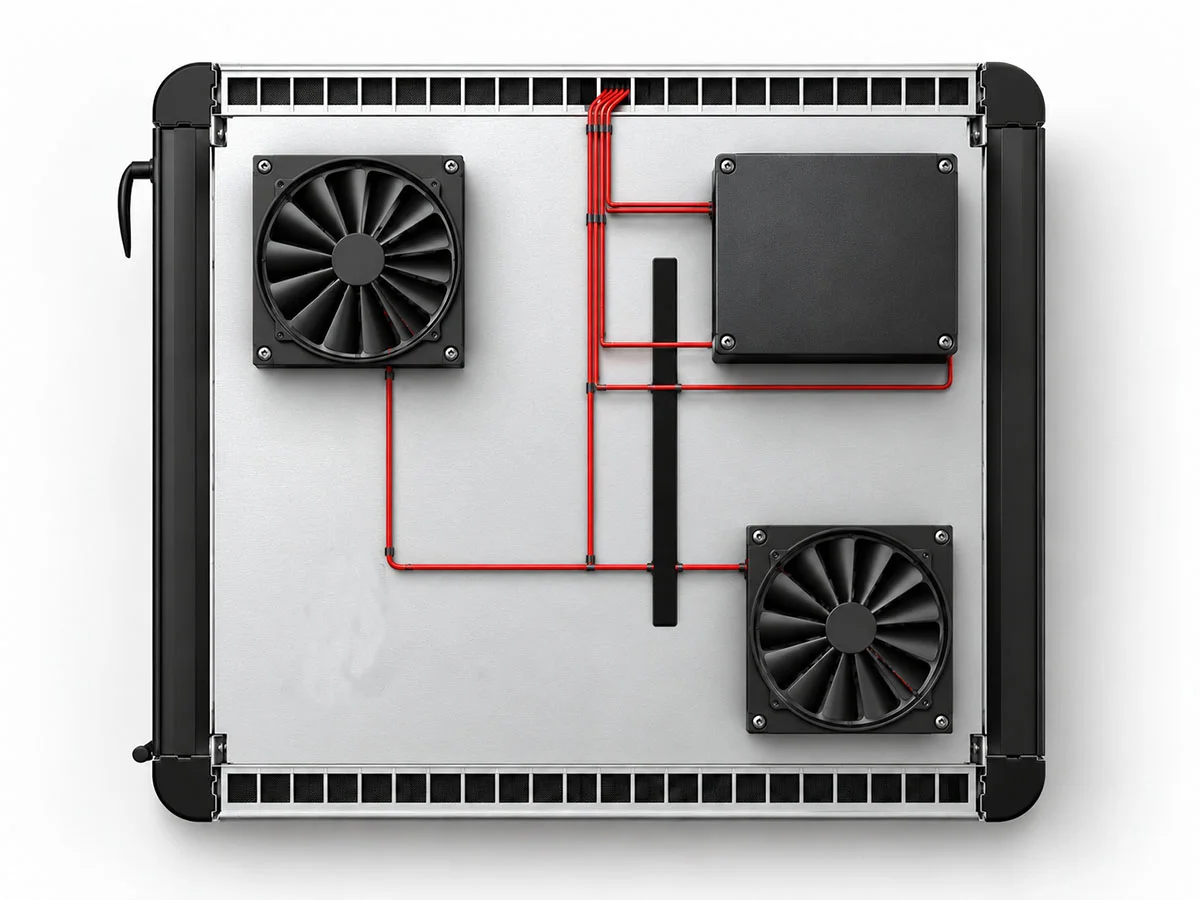

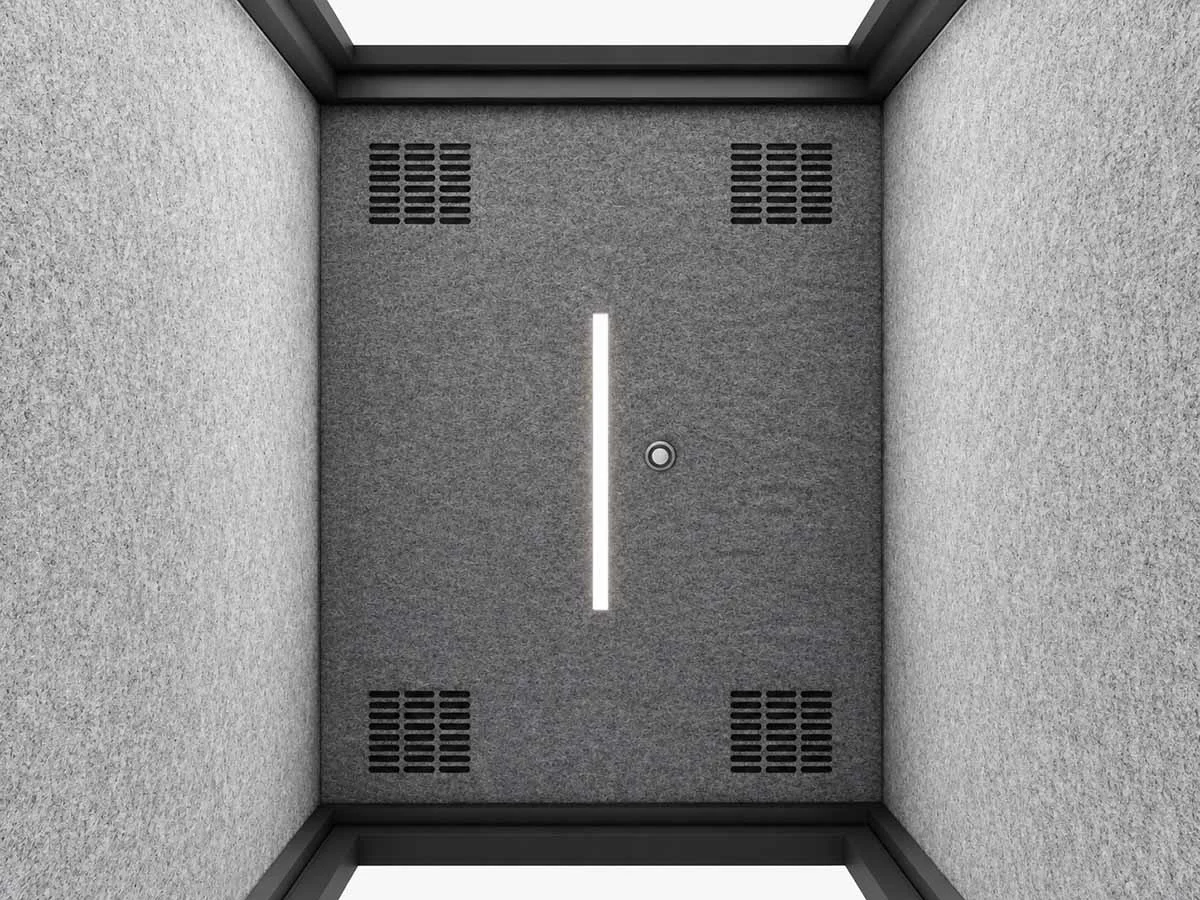

The ceiling module, base platform, casters / leveling feet, and pre-arranged technical interfaces connect with the ventilation, lighting and power systems shown on the previous screen.

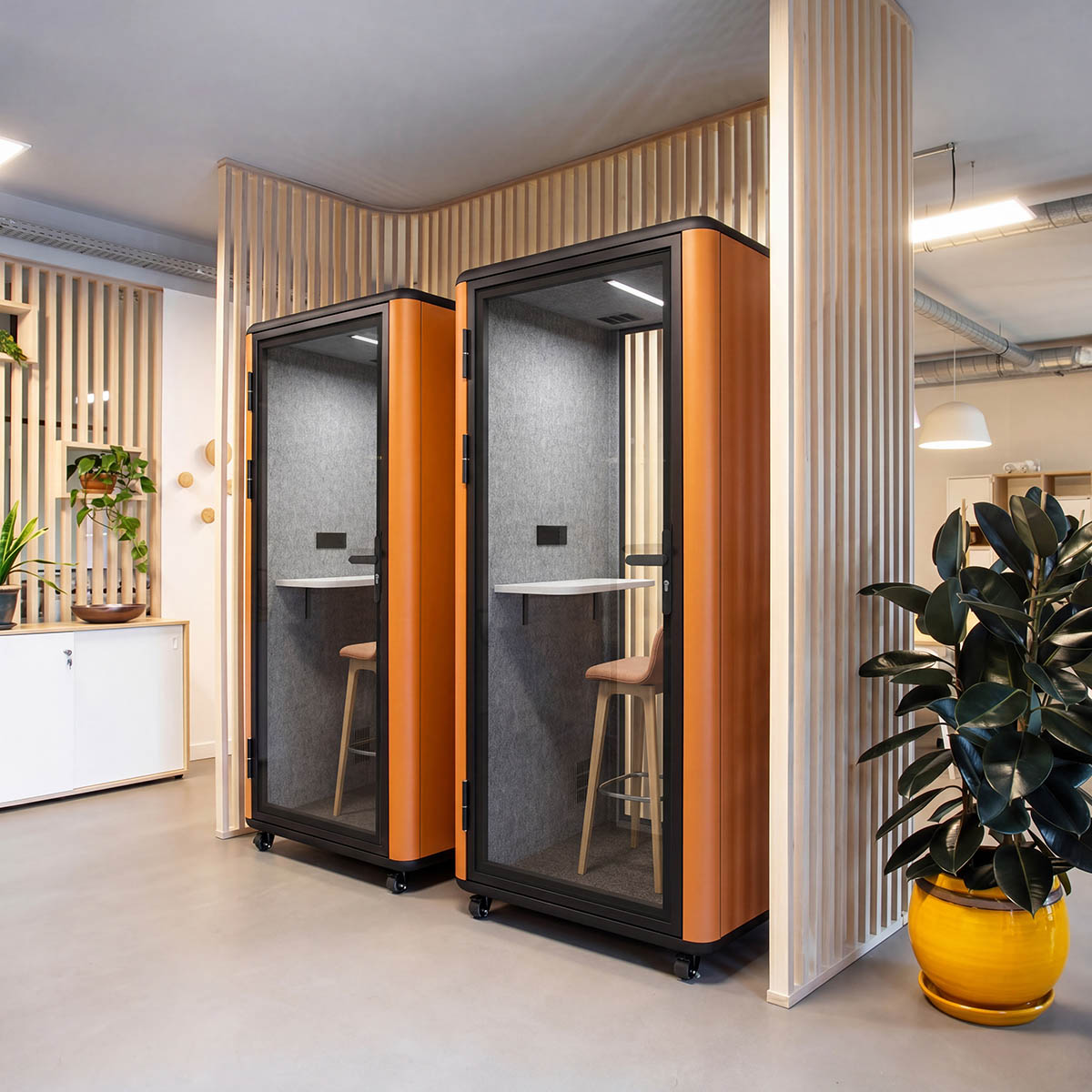

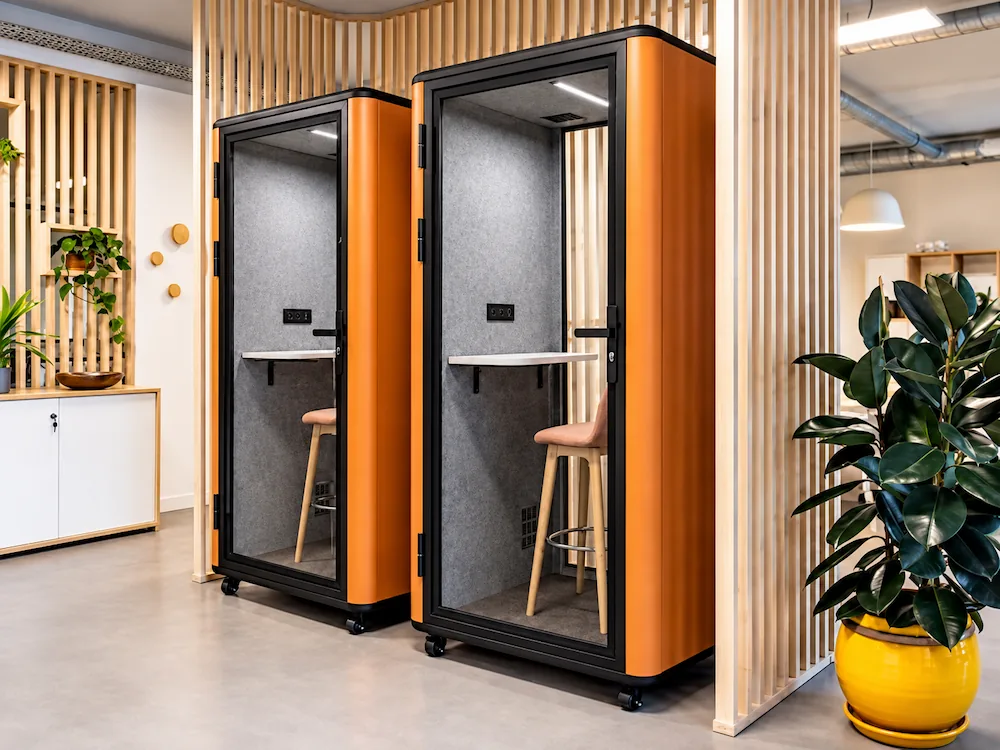

Plan Your 1P Pod Placement
Check the planned location, access route and site connections before confirming your order.
Technical Resources & Project Support
Get the current 1P technical documents and confirm the final specification for your project.
Next Step
1P Office Pod FAQ
What is a 1 person office pod used for?
A 1 person office pod is designed for one person to make private calls, join video meetings, or do short periods of focused work away from the open office.
When should I choose a 1P pod instead of a 2P pod?
Choose a 1P pod when the space is mainly for one person. If two people need to sit together for an interview, private discussion, or face-to-face meeting, a 2P pod is usually the better fit.
What is the difference between Model A, Model B and Model C?
Model A, Model B and Model C are different exterior design series for the same 1P use case. They are not different quality or performance grades.

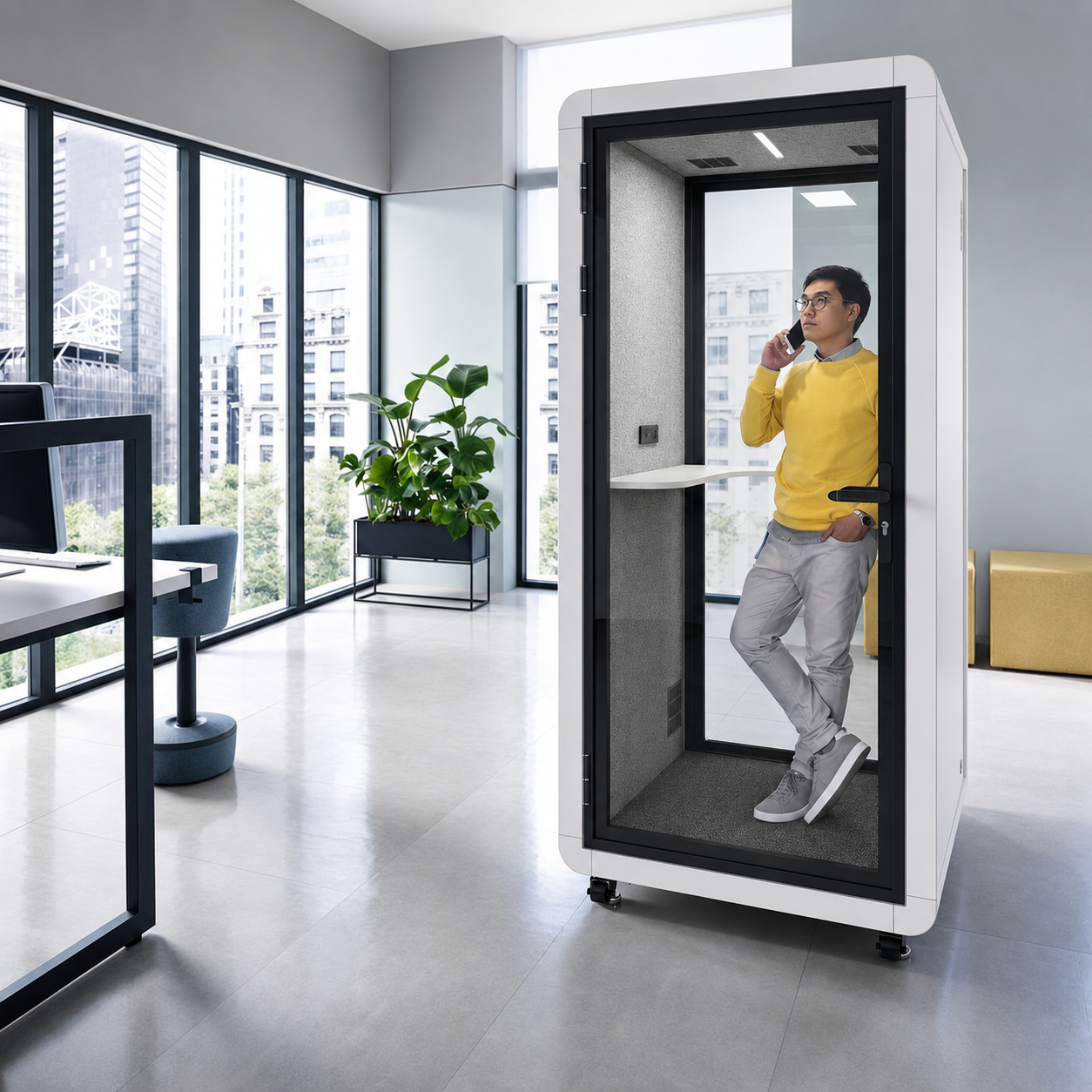

Is a 1P office pod soundproof?
A 1P office pod is designed to support speech privacy and provide a more controlled environment for calls and focused work. It should not be treated as a promise of complete silence or 100% soundproofing. Detailed acoustic evidence can be reviewed separately.
Can I request the latest 1P dimensions, drawings and specification sheet?
Yes. Current 1P dimensions, specification sheets and technical drawings can be requested for project review so you can work from the latest available product information.
