Cape Height Adjustable Desk Series
The Cape Series includes two product types: an Executive / Manager Desk and a Conference Table. Both use a dual-motor, three-stage lifting system, with different dimensions, height ranges, and configurations for private executive offices and group meeting spaces.
Cape Conference Table in a meeting-room application.
Cape Executive / Manager Desk in a private-office application.
Shared Architecture, Different Cape Configurations
The Cape Executive / Manager Desk and Conference Table both use a dual-motor, three-stage lifting system. The main structural difference is the column section: 225 × 109 mm for the Executive / Manager Desk and 225 × 165 mm for the Conference Table.
| Configuration | Executive / Manager Desk | Conference Table |
|---|---|---|
| Lifting System | Dual motor / three-stage columns | Dual motor / three-stage columns |
| Column Section | 225 × 109 mm | 225 × 165 mm |
| Foot Options | CPF-01 / CPF-02 | CPF-01 / CPF-02 |
| Optional Handsets | K1 / KC | K1 / KC |

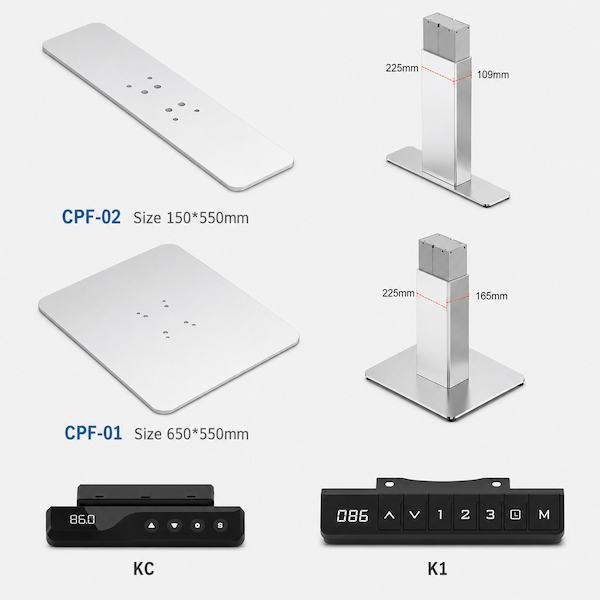

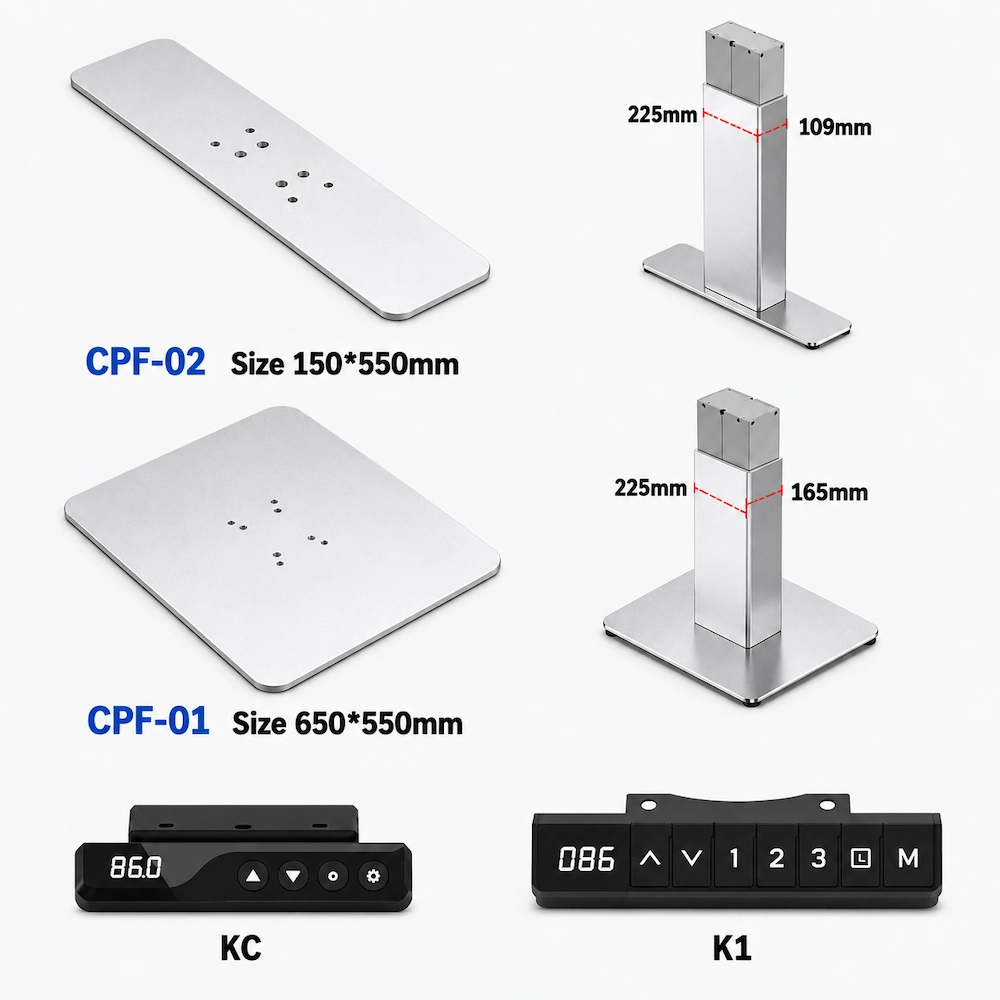

Foot and Handset Options
Both Cape products can be configured with either CPF-01 or CPF-02 foot options, with K1 or KC available as optional handset choices.
View Cape Specifications
Compare Cape Sizes and Lifting Specifications
The Cape Executive / Manager Desk is the more compact format for private executive offices, while the Conference Table provides a larger table format for group meeting spaces. Their dimensions and lifting height ranges differ accordingly.
Size and Height Range
| Specification | Executive / Manager Desk | Conference Table |
|---|---|---|
| Product Dimensions | 1800–2400 × 800–1000 mm | 2000–4800 × 1200 mm |
| Lifting Height Range | 670–1150 mm | 725–1355 mm |
Specifications Shared by Both Products
| Specification | Cape Executive / Manager Desk & Conference Table |
|---|---|
| Maximum Load | 120 kg, excluding desktop weight |
| Lifting Speed | Approx. 30 mm/s |
| Operating Noise | <50 dB |
Choose the Right Cape for Your Space
Start with the available room space and required table size, then check that the corresponding lifting height range suits the intended use.
Both products have a maximum load of 120 kg, excluding desktop weight. When checking the required load, account for the desktop weight separately.
View Cape Configurations & Technical Resources

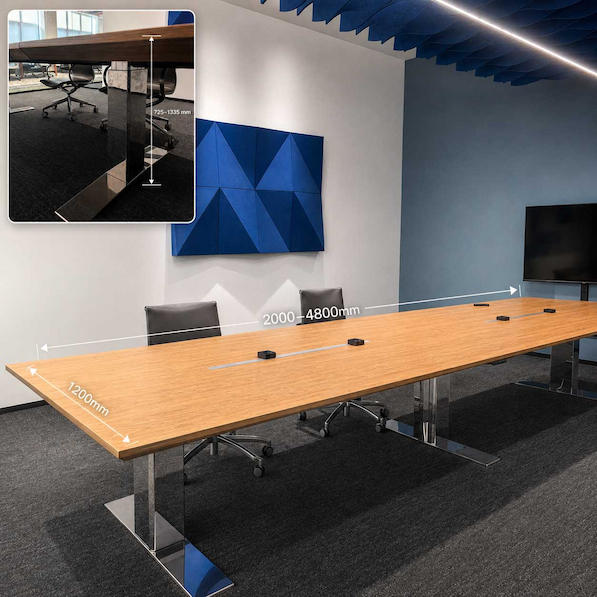

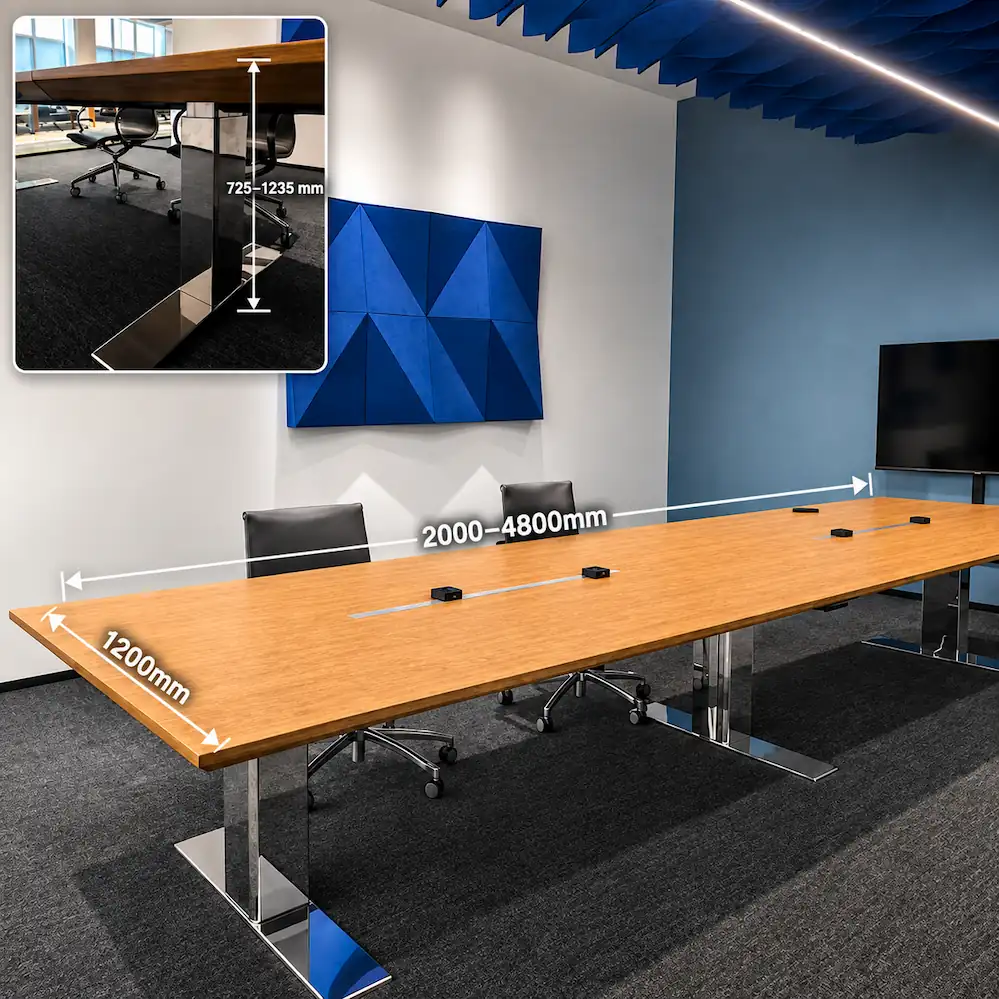

Cape Conference Table size and lifting range shown in a meeting-room application.
Cape Drawings and Project Support
Download the available Cape product drawings, request any additional technical documents needed for your project, and provide the key project details needed to finalize your Cape configuration and request a quotation.
